YENİ NESİL ELEKTRİK ENERJİSİ ÜRETİMLERİ (NEW GENERATION ELECTRIC POWER PRODUCTIONS)

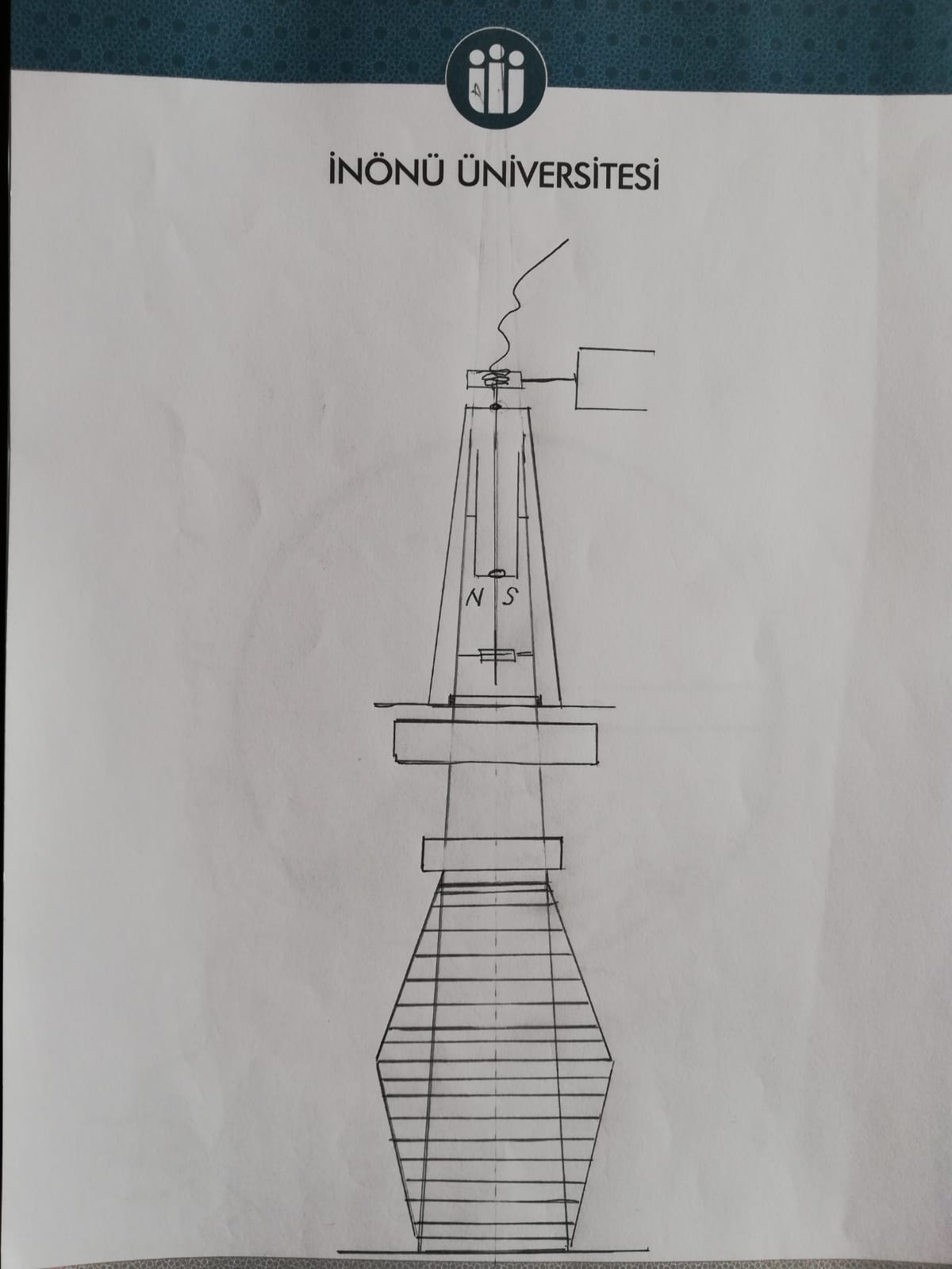

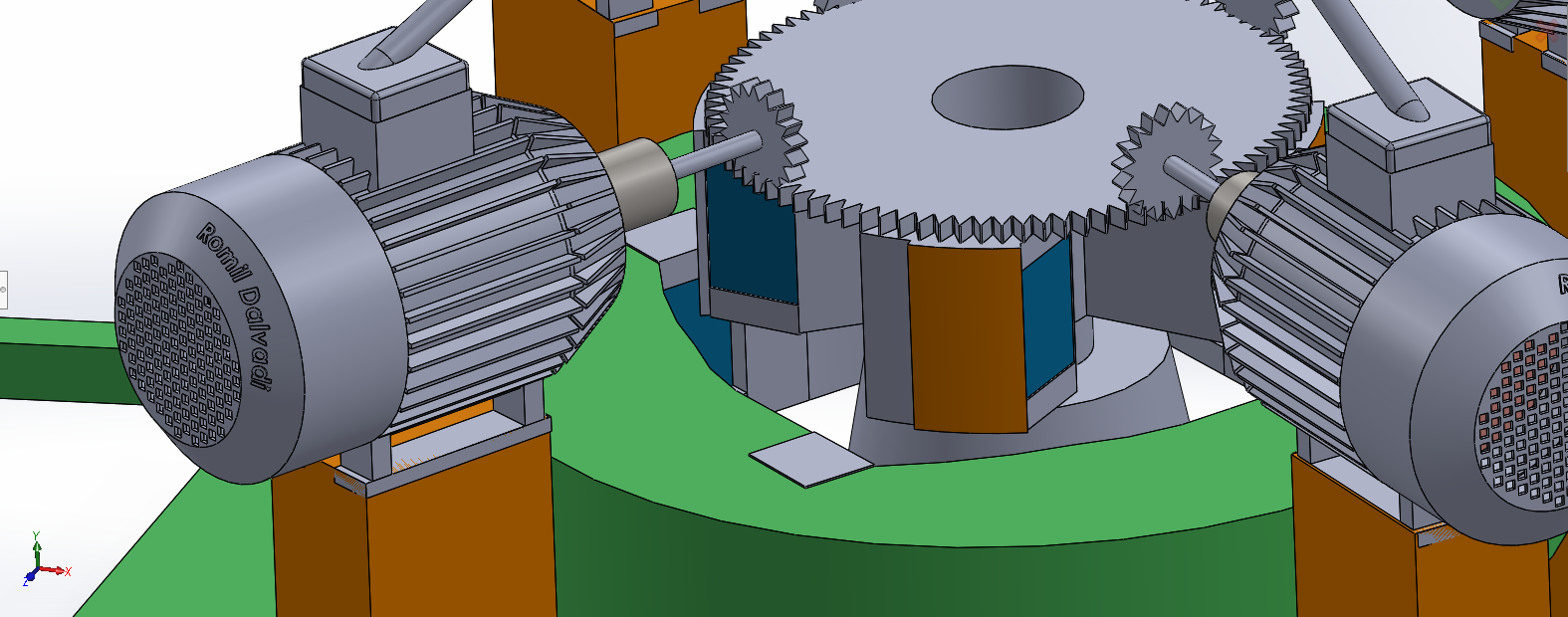

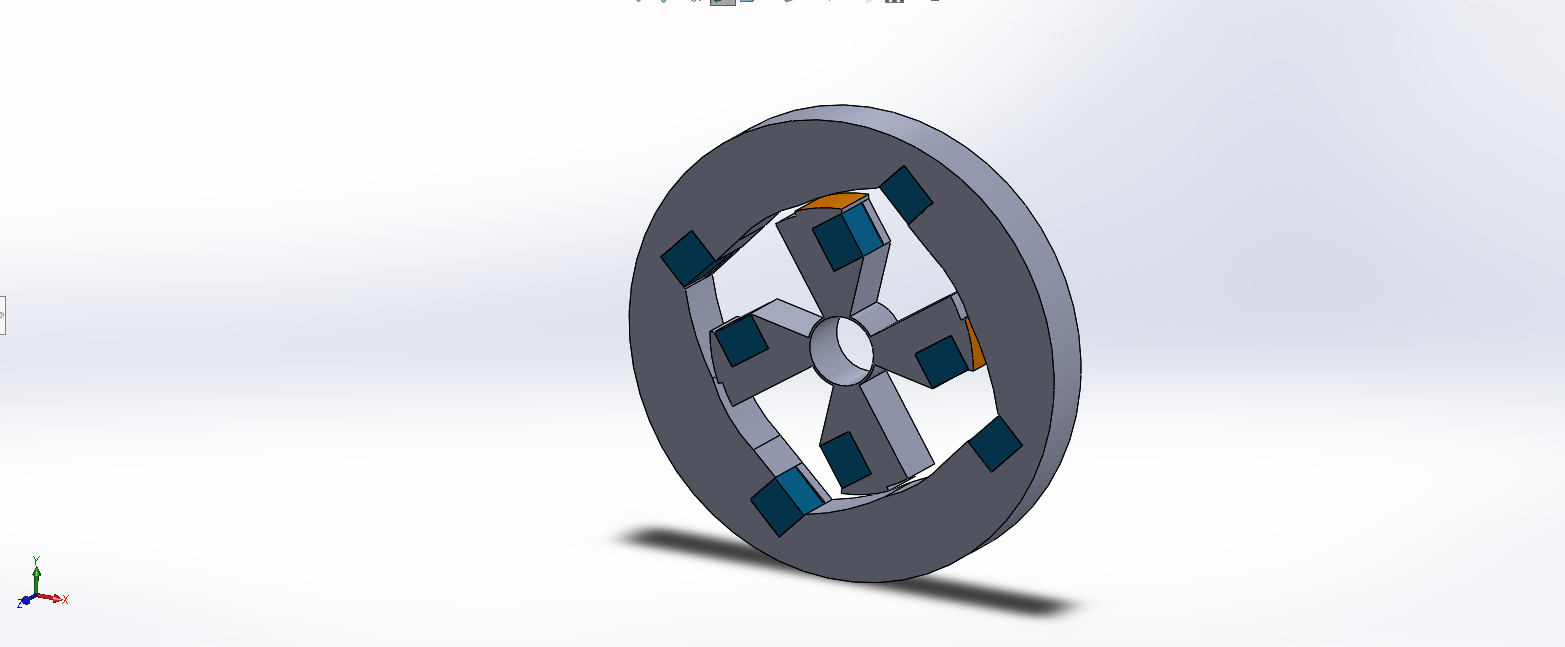

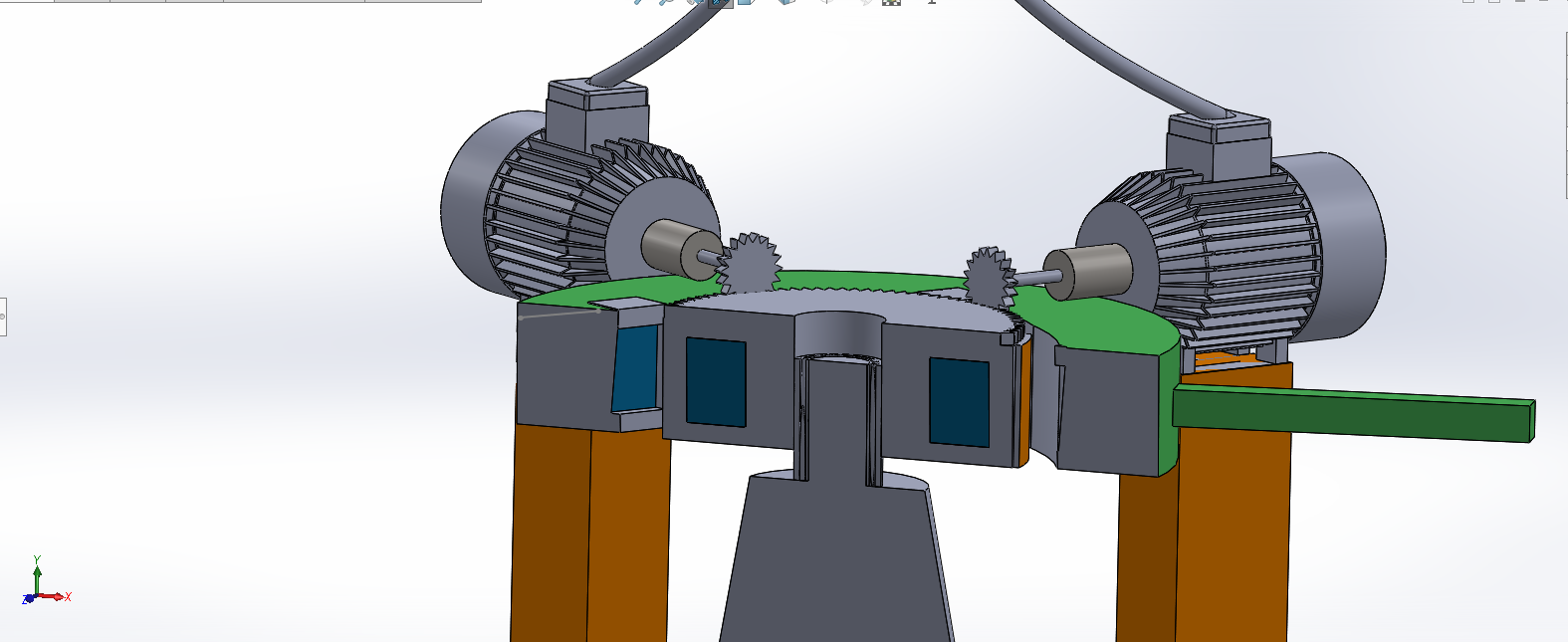

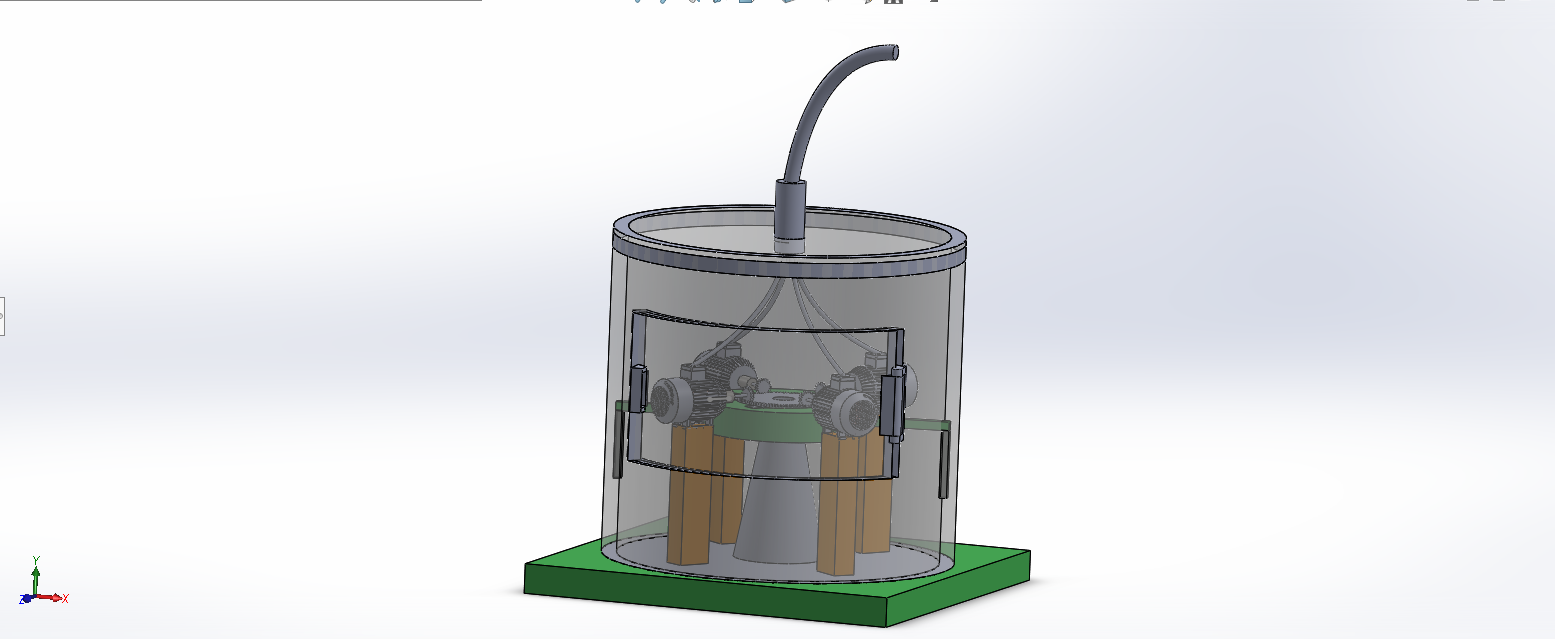

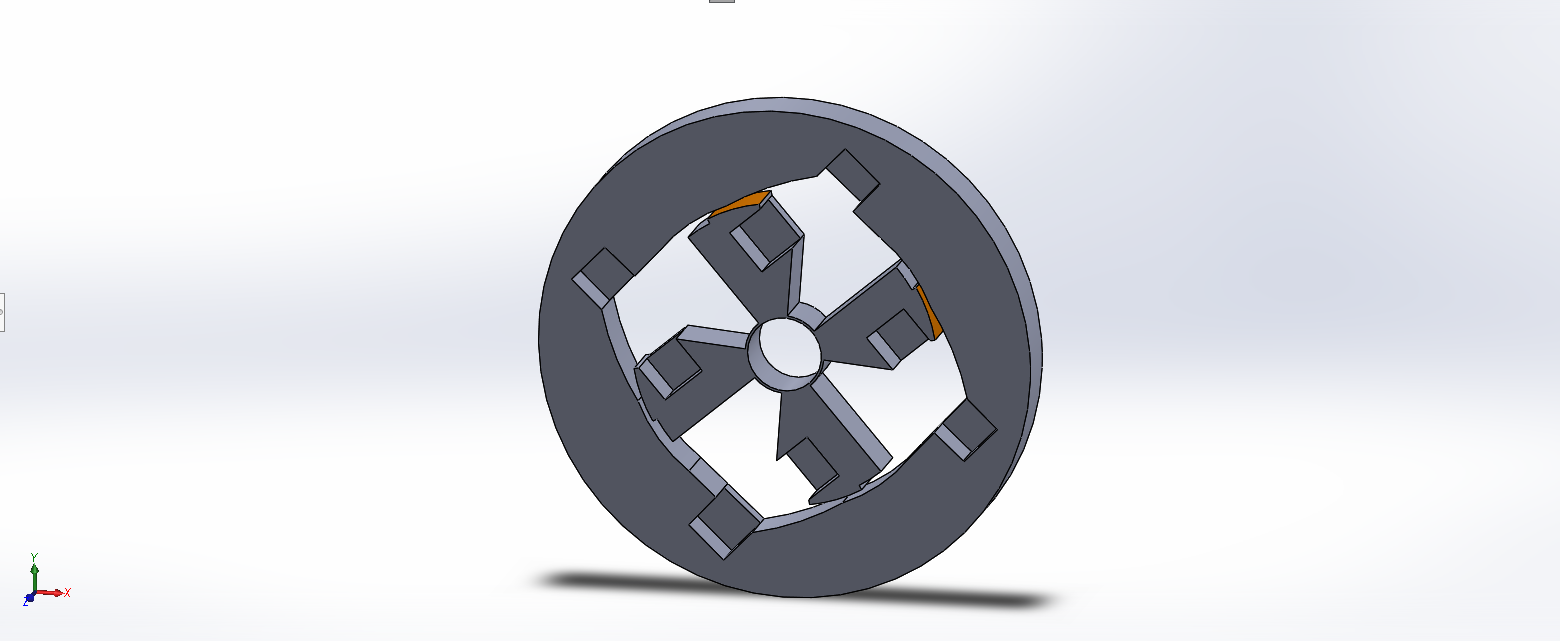

1- Mıknatıs Tekerleği Elektrik Enerjisi Ūretimi(Magnet Wheel Electrcity Energy Production) Tarih  03/02/2020 Saat:19:57

Series A

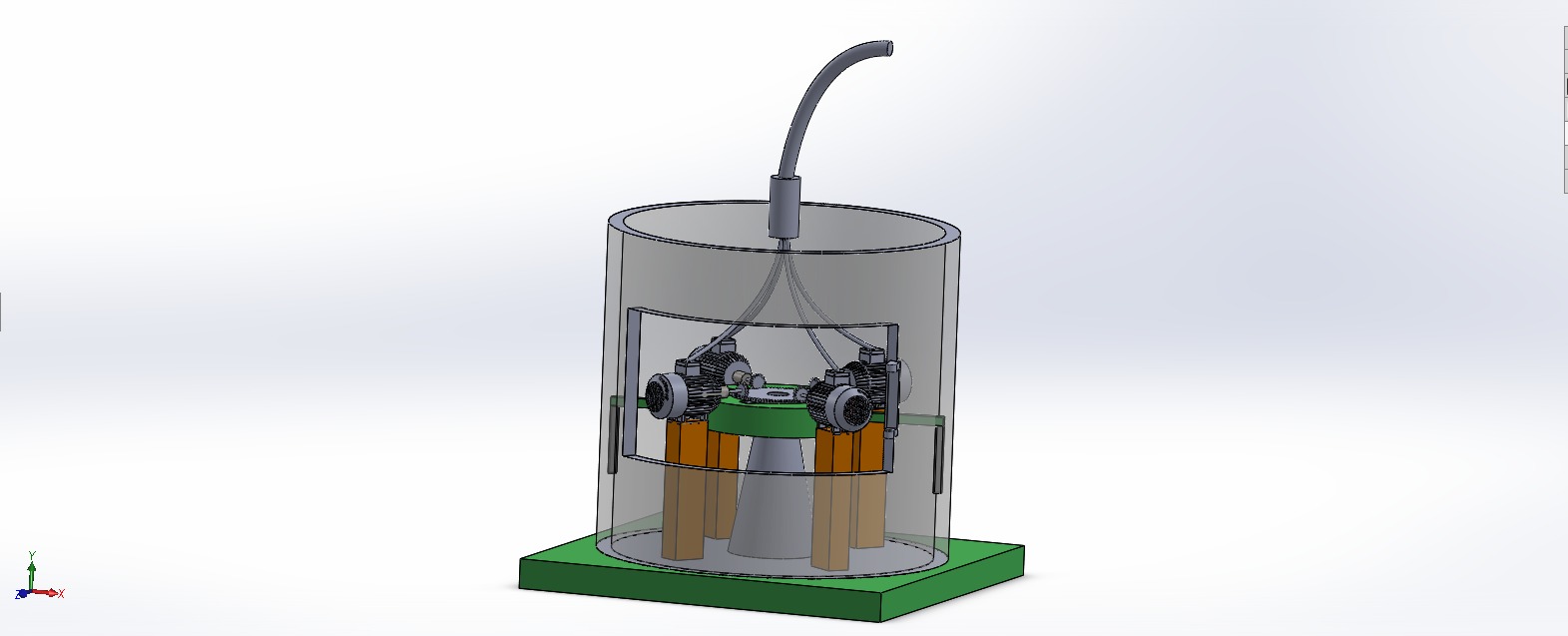

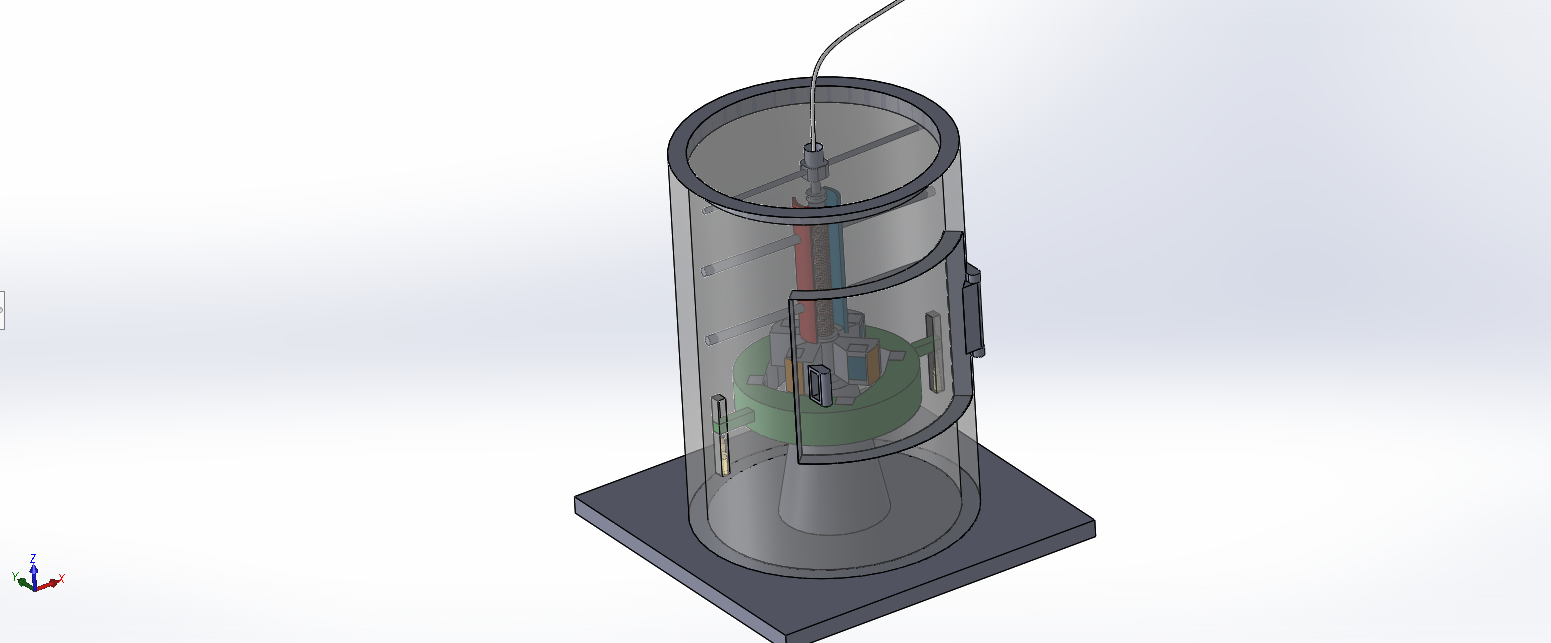

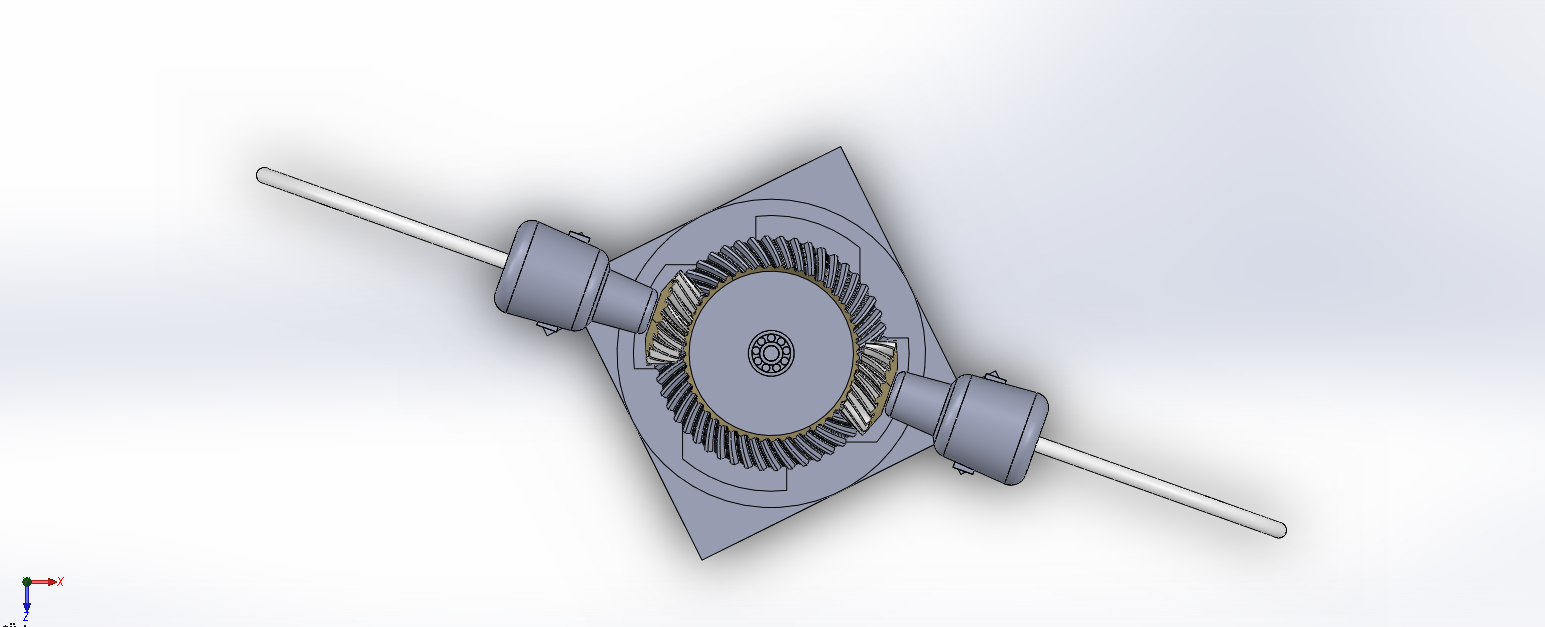

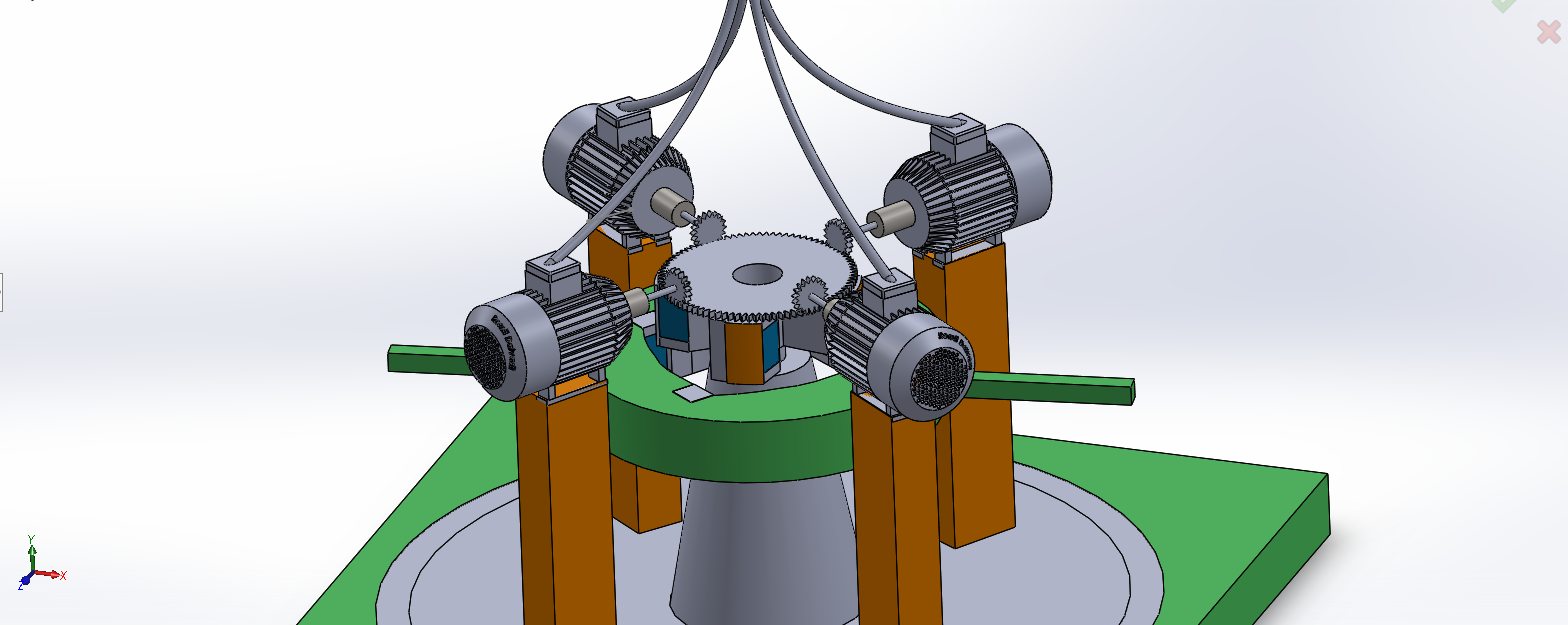

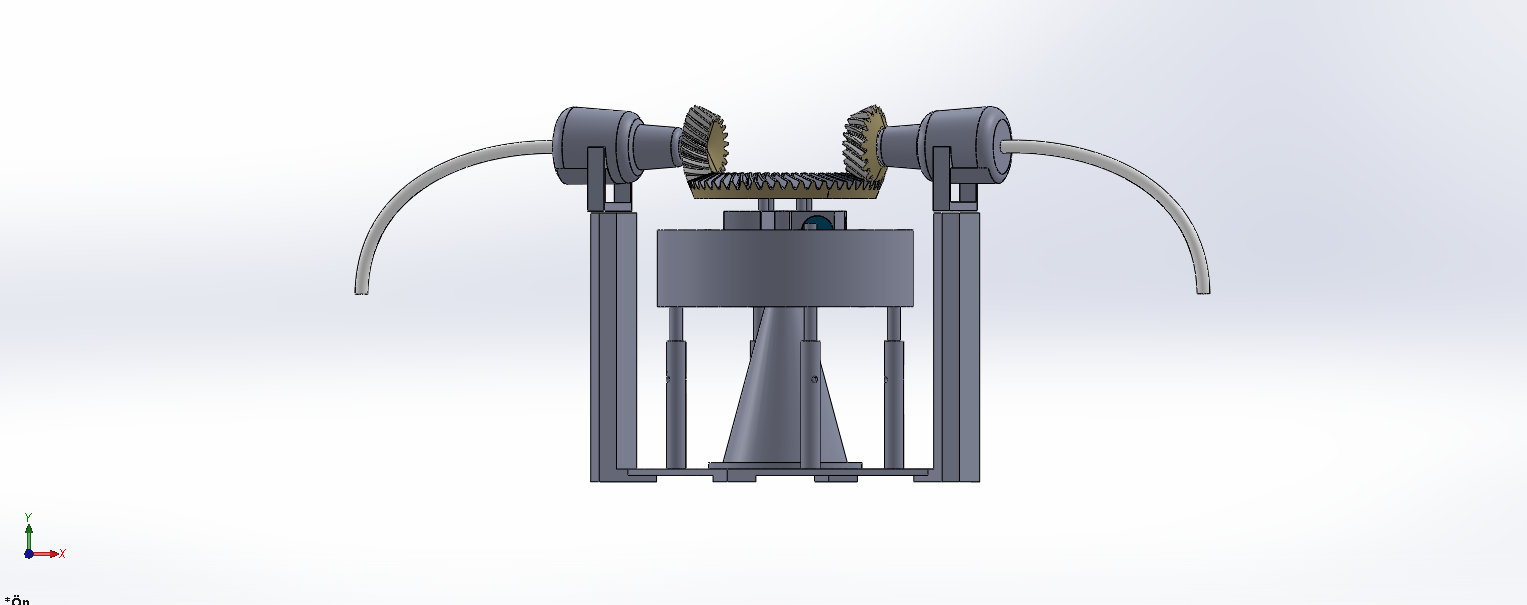

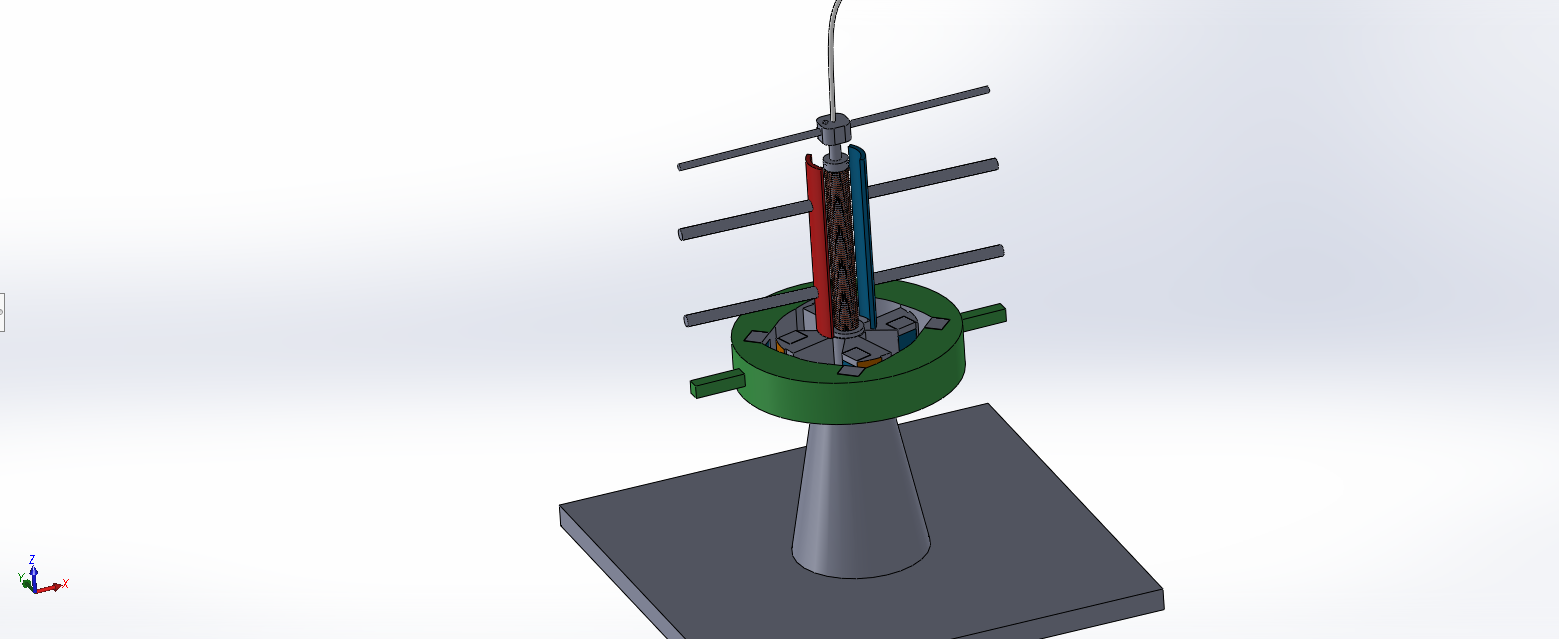

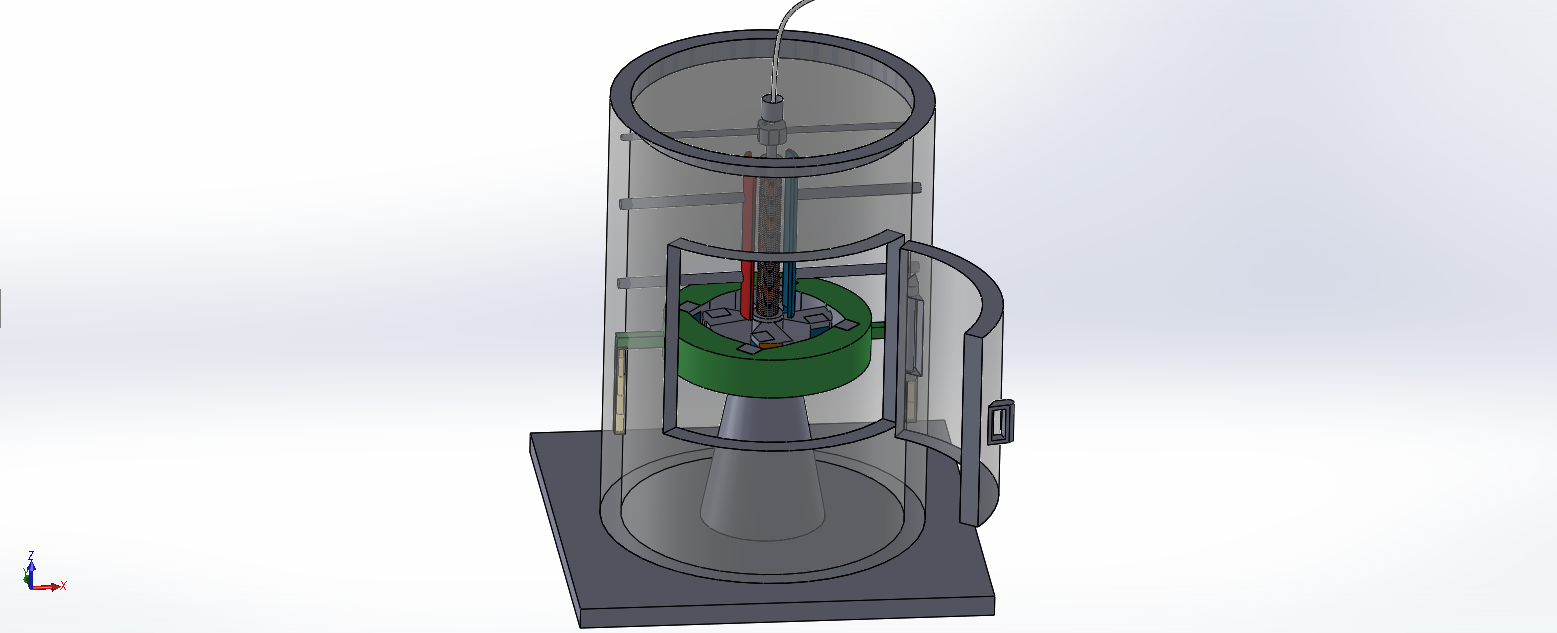

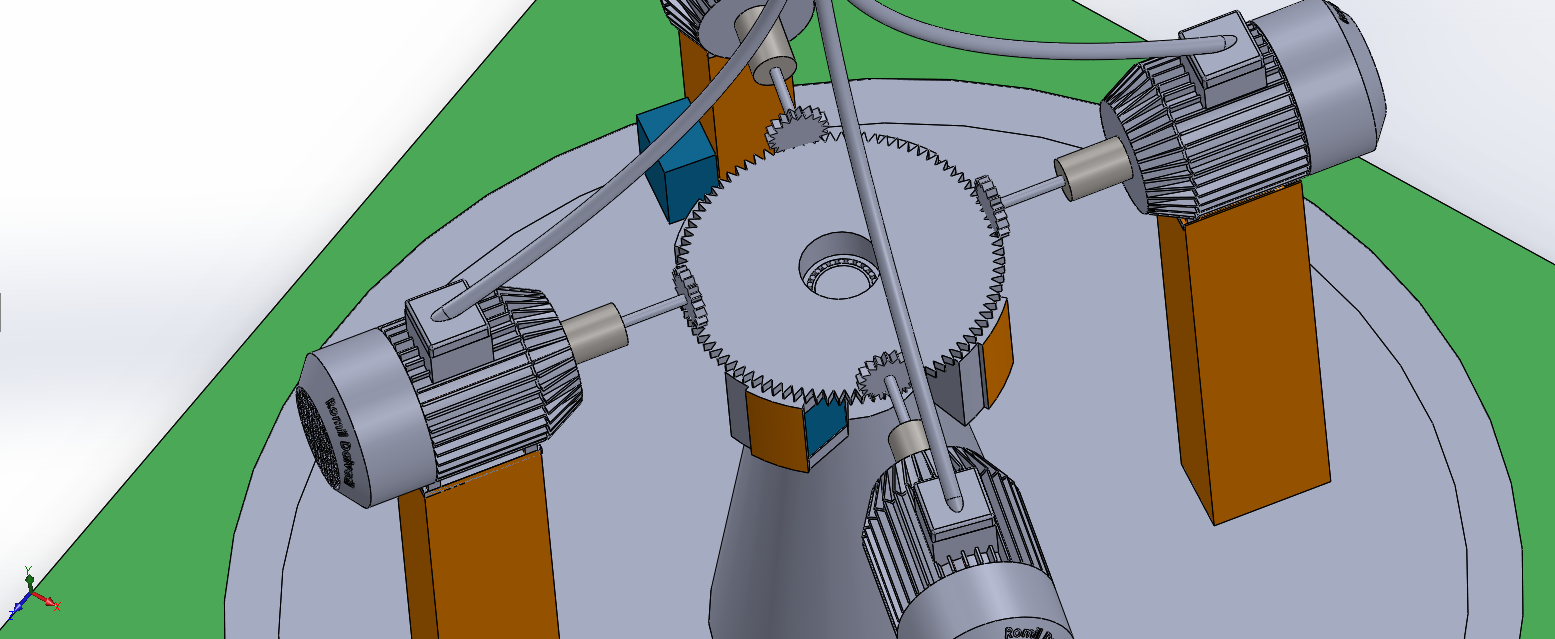

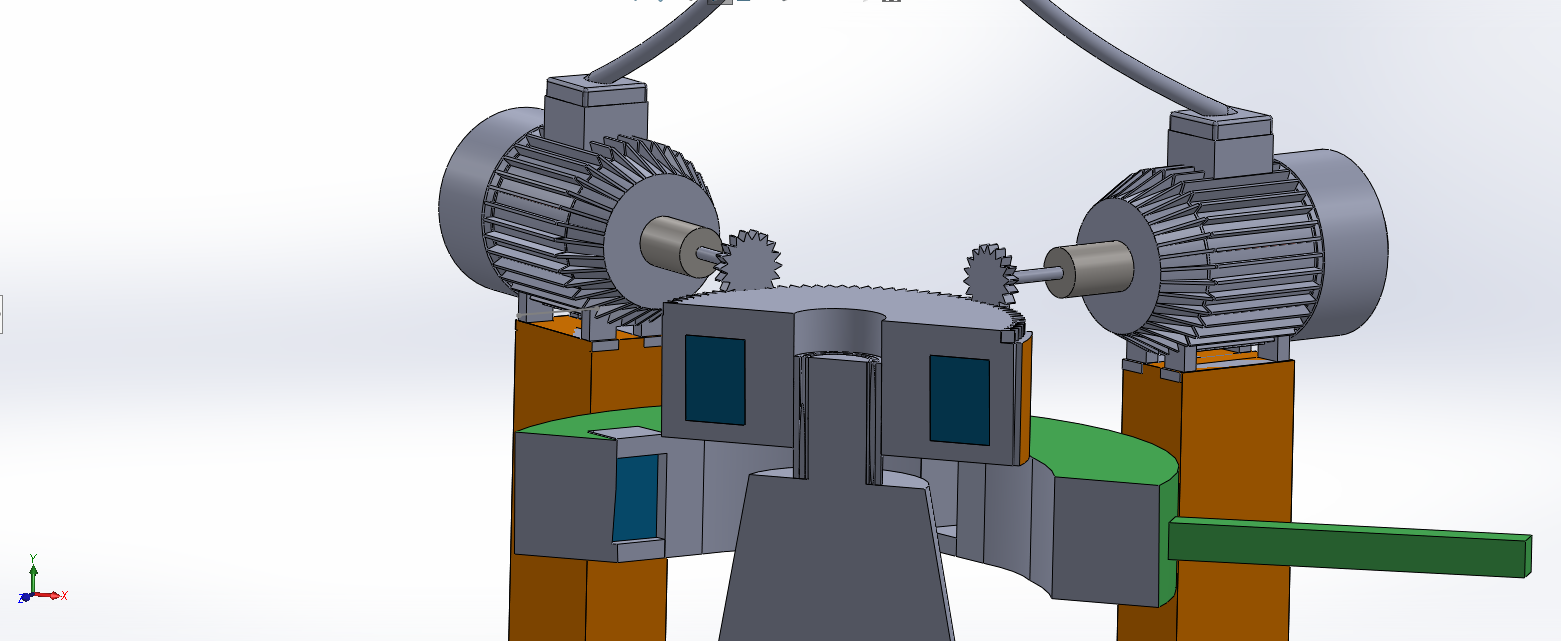

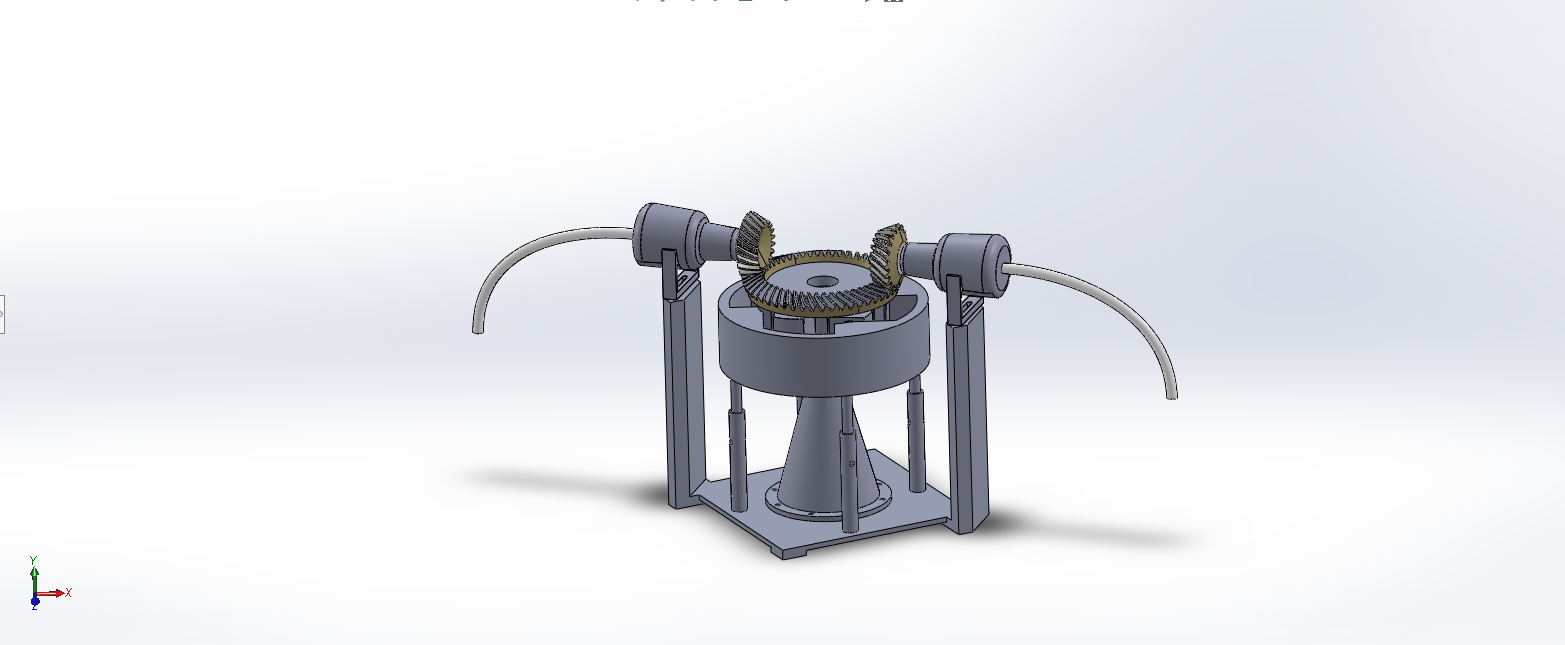

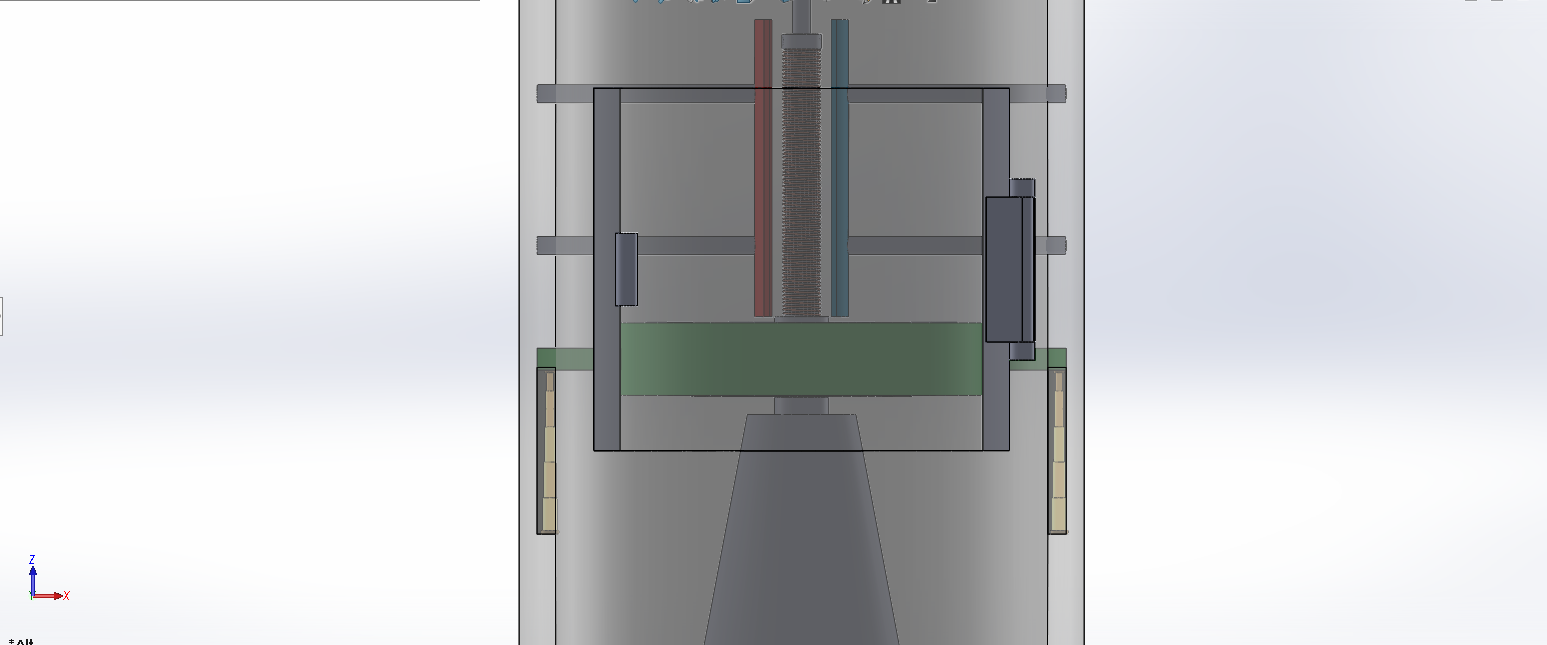

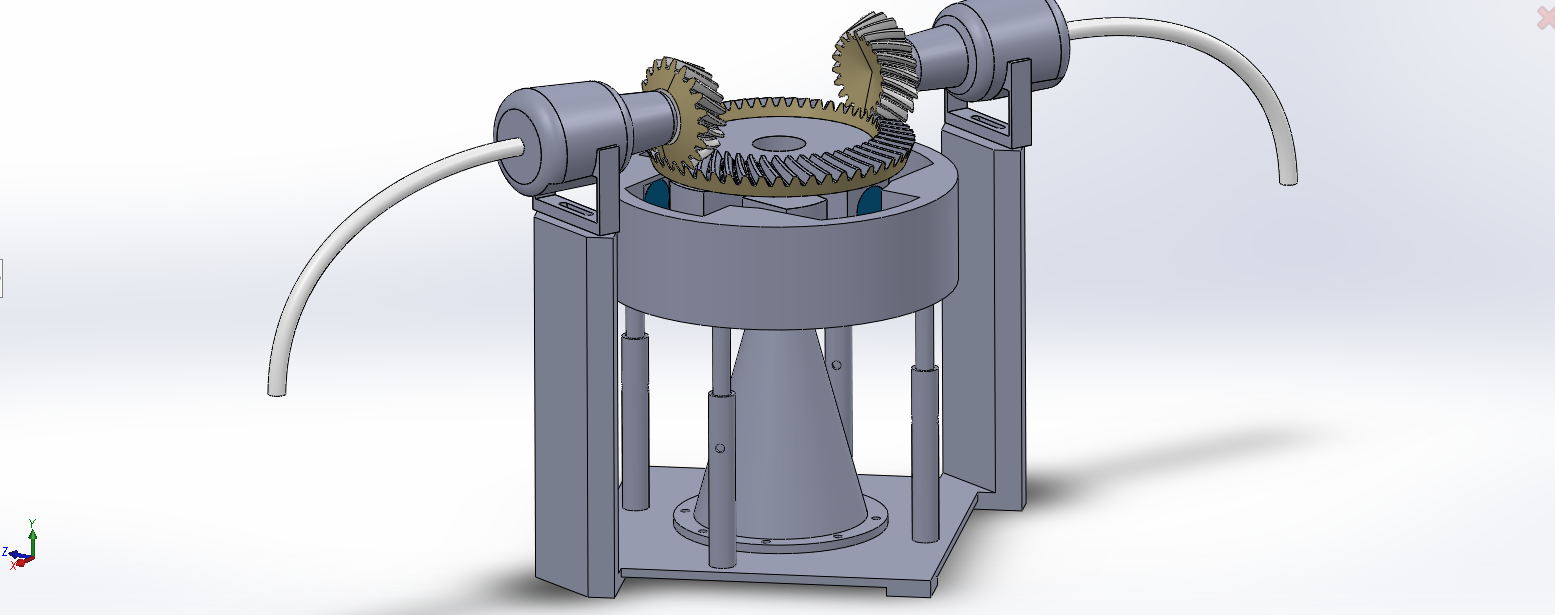

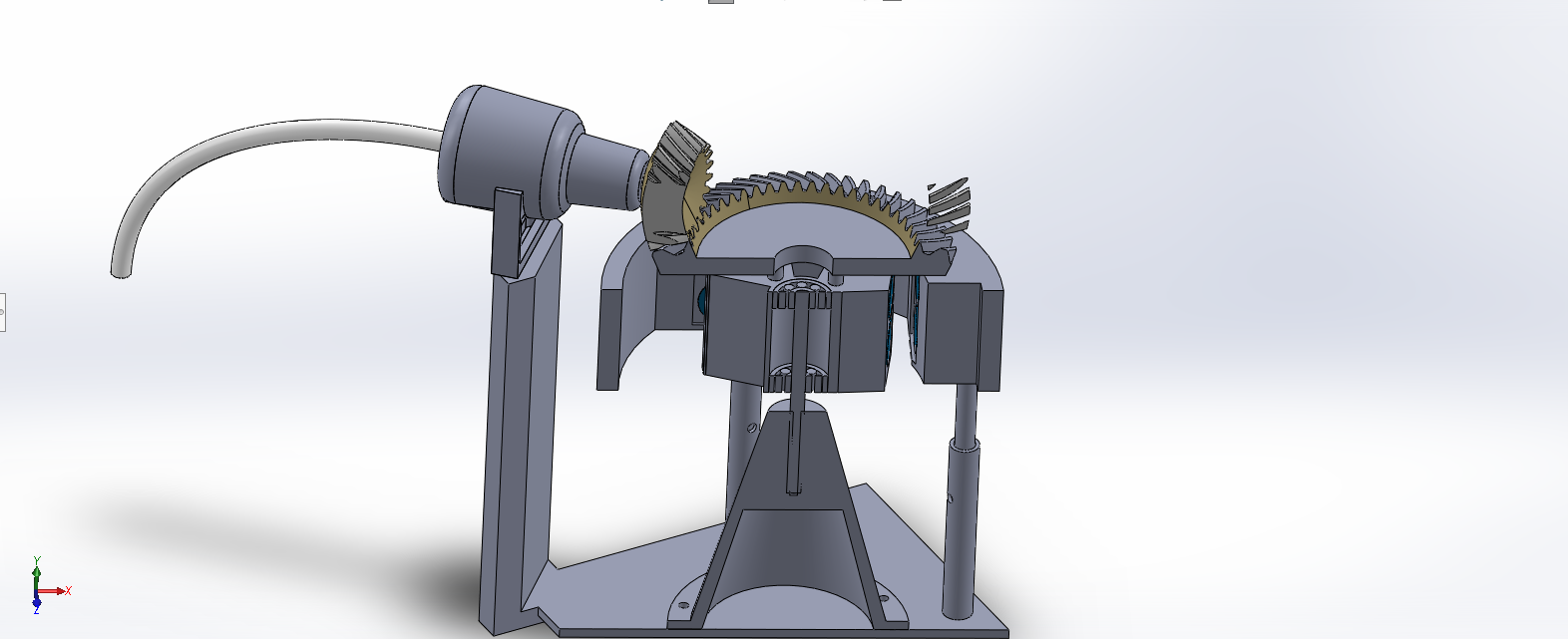

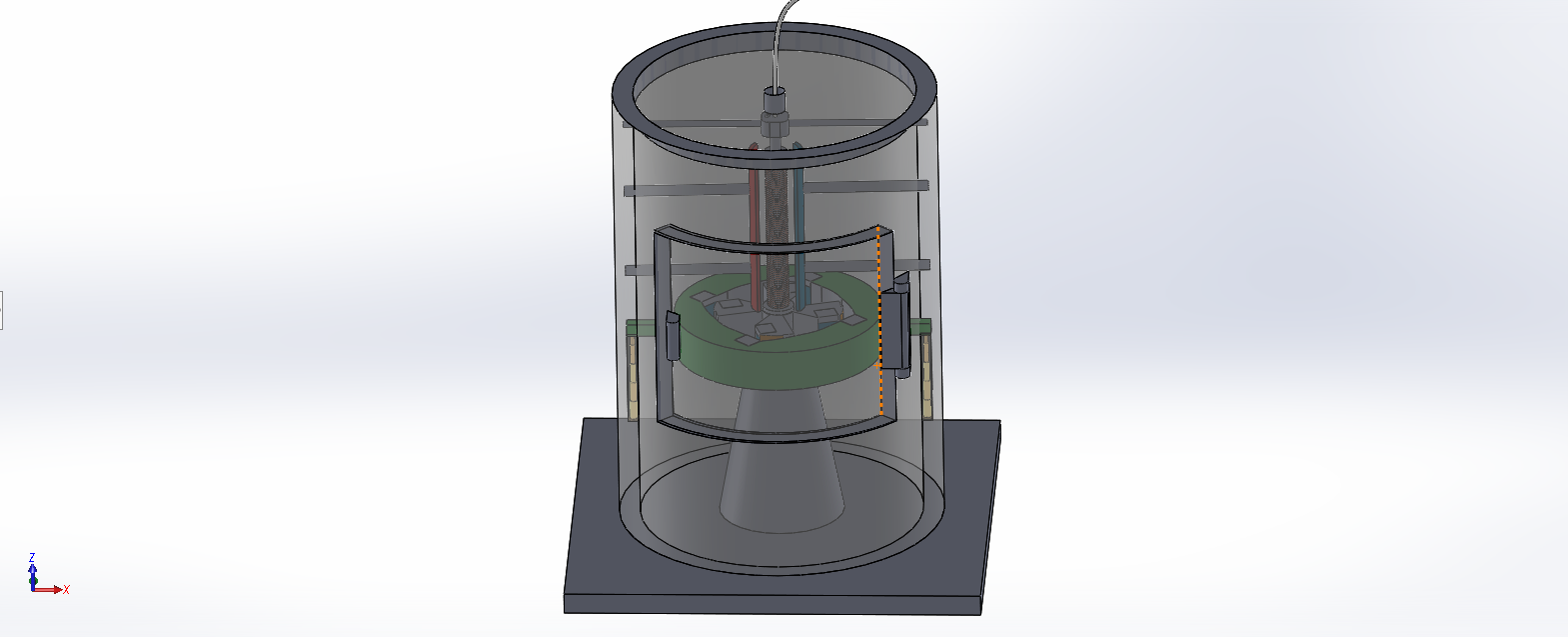

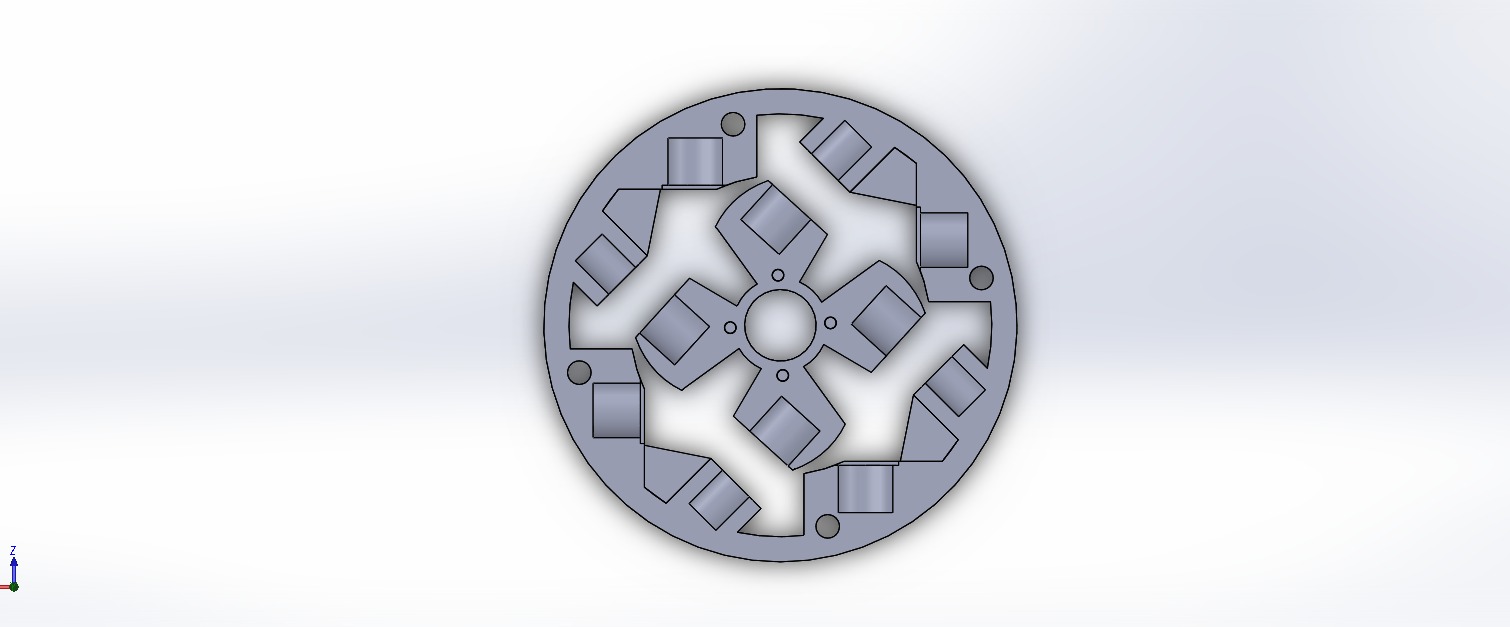

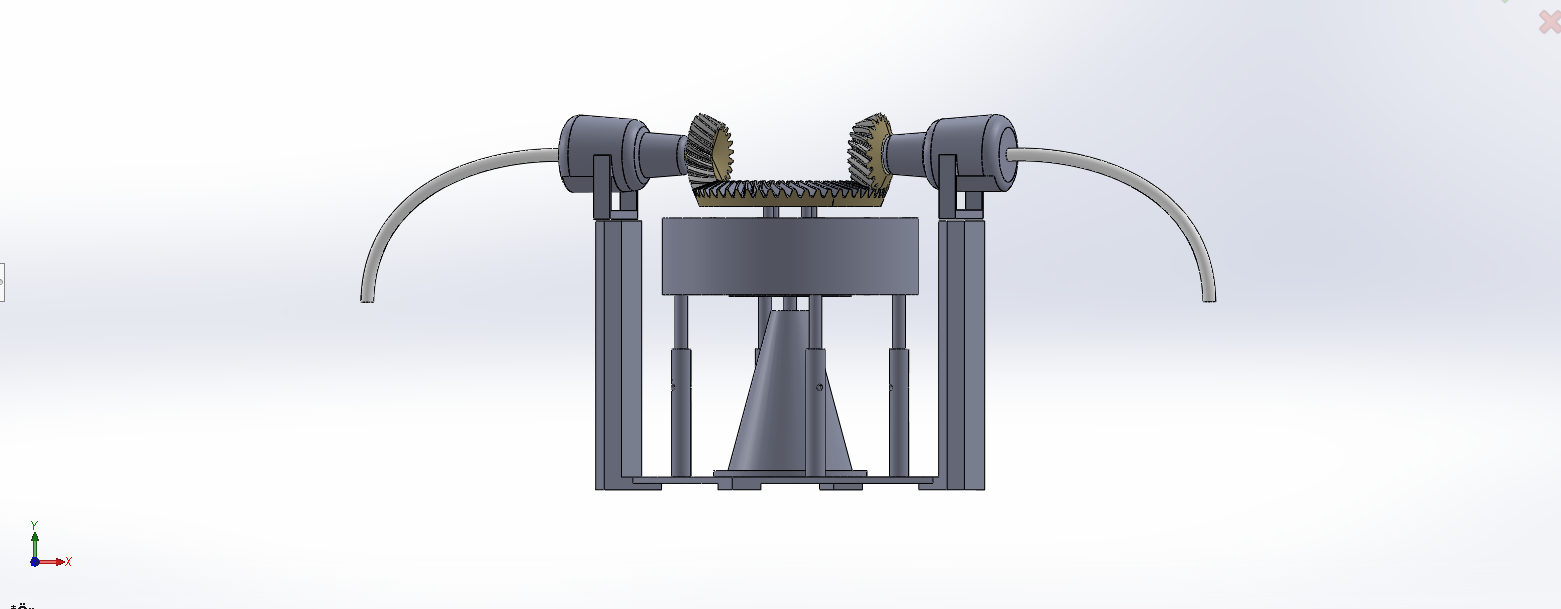

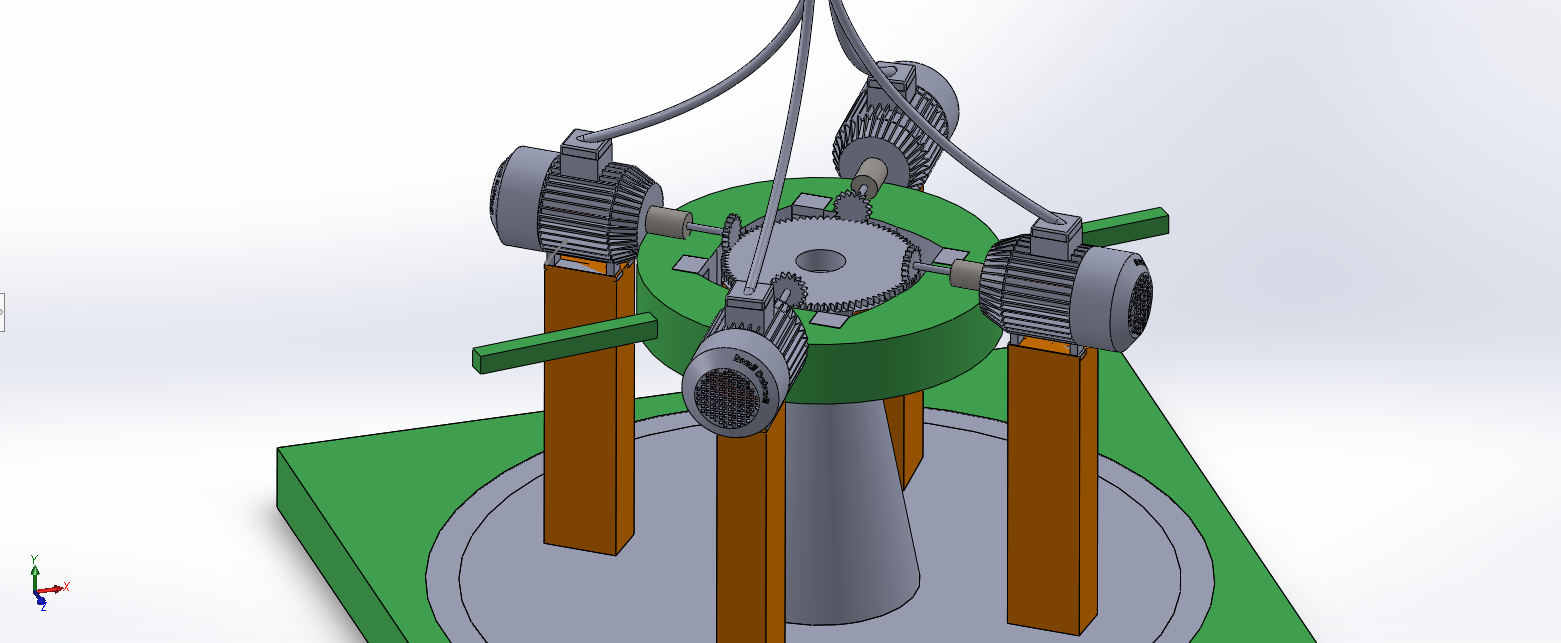

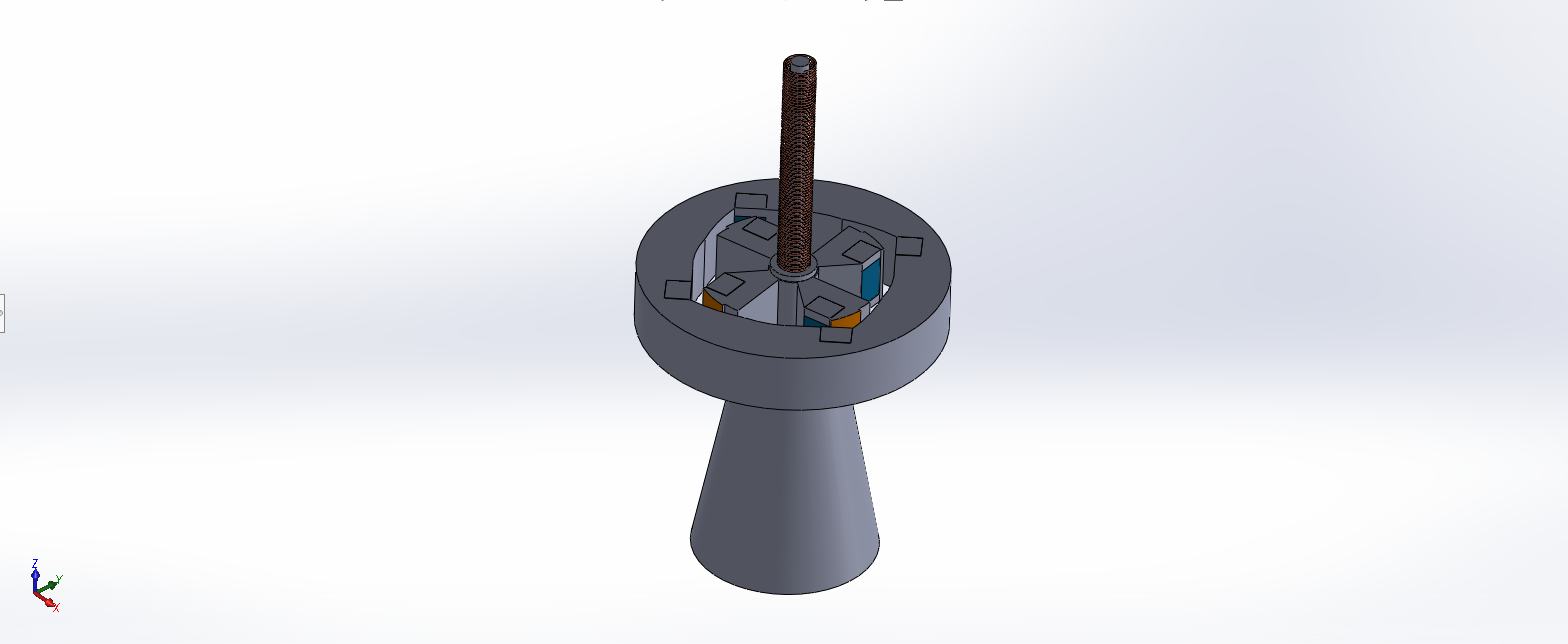

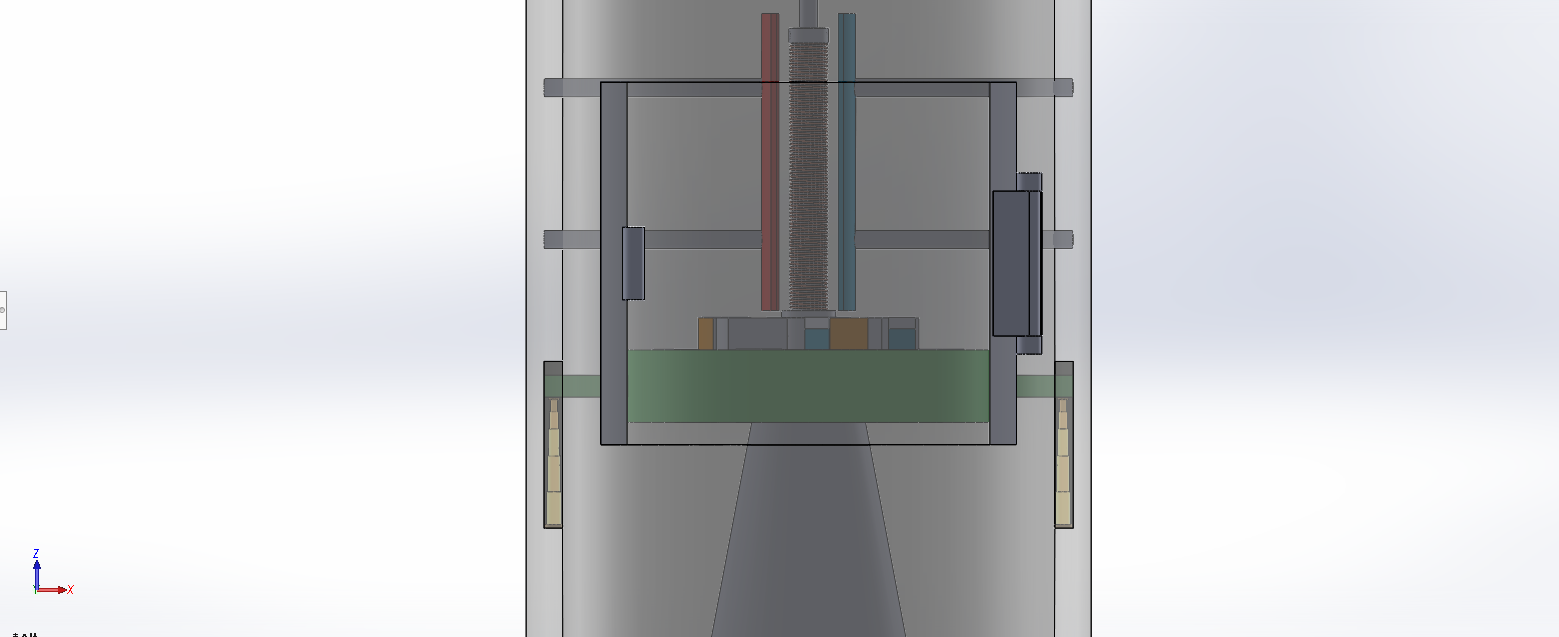

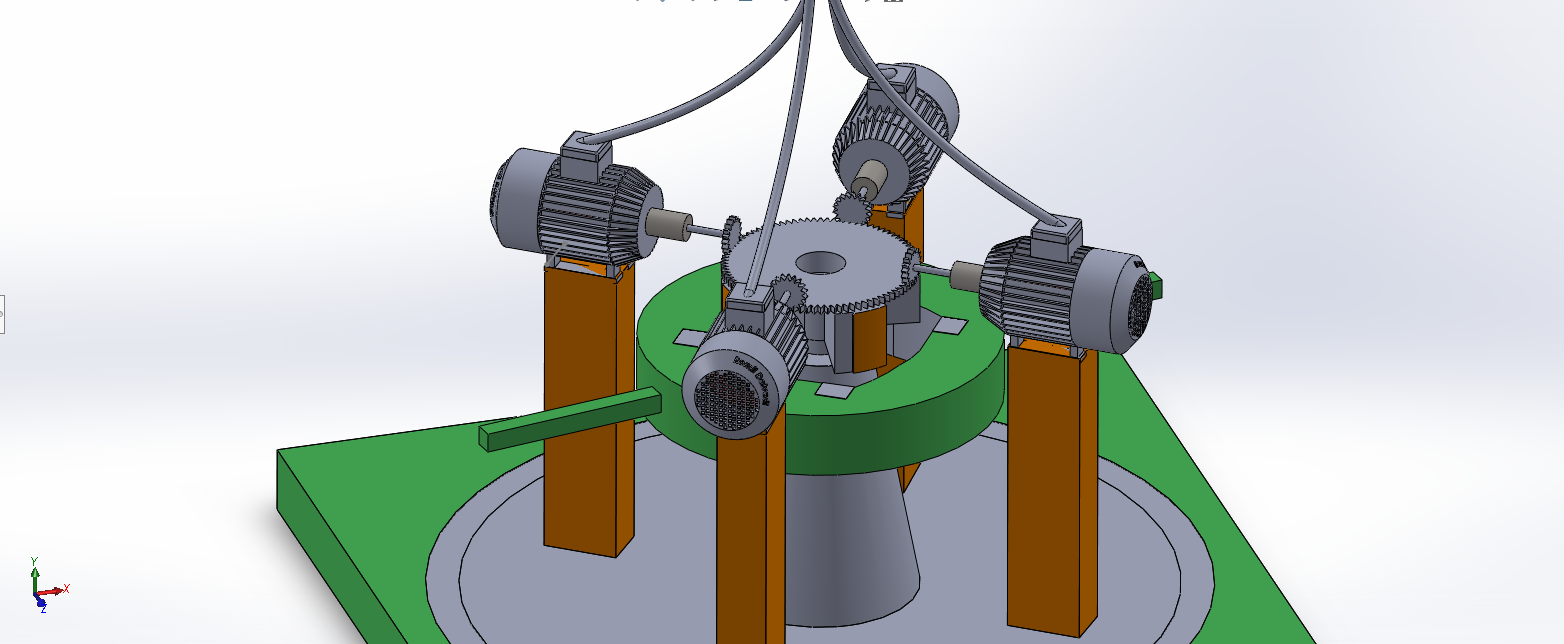

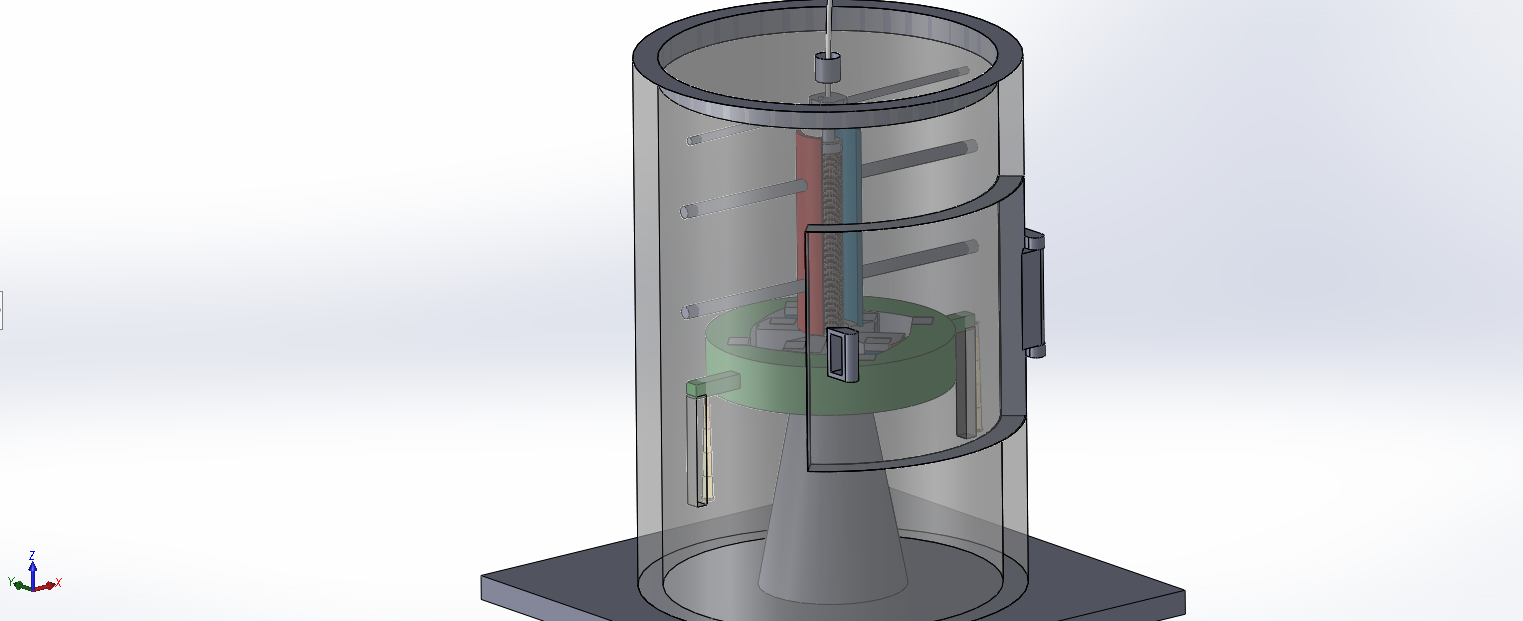

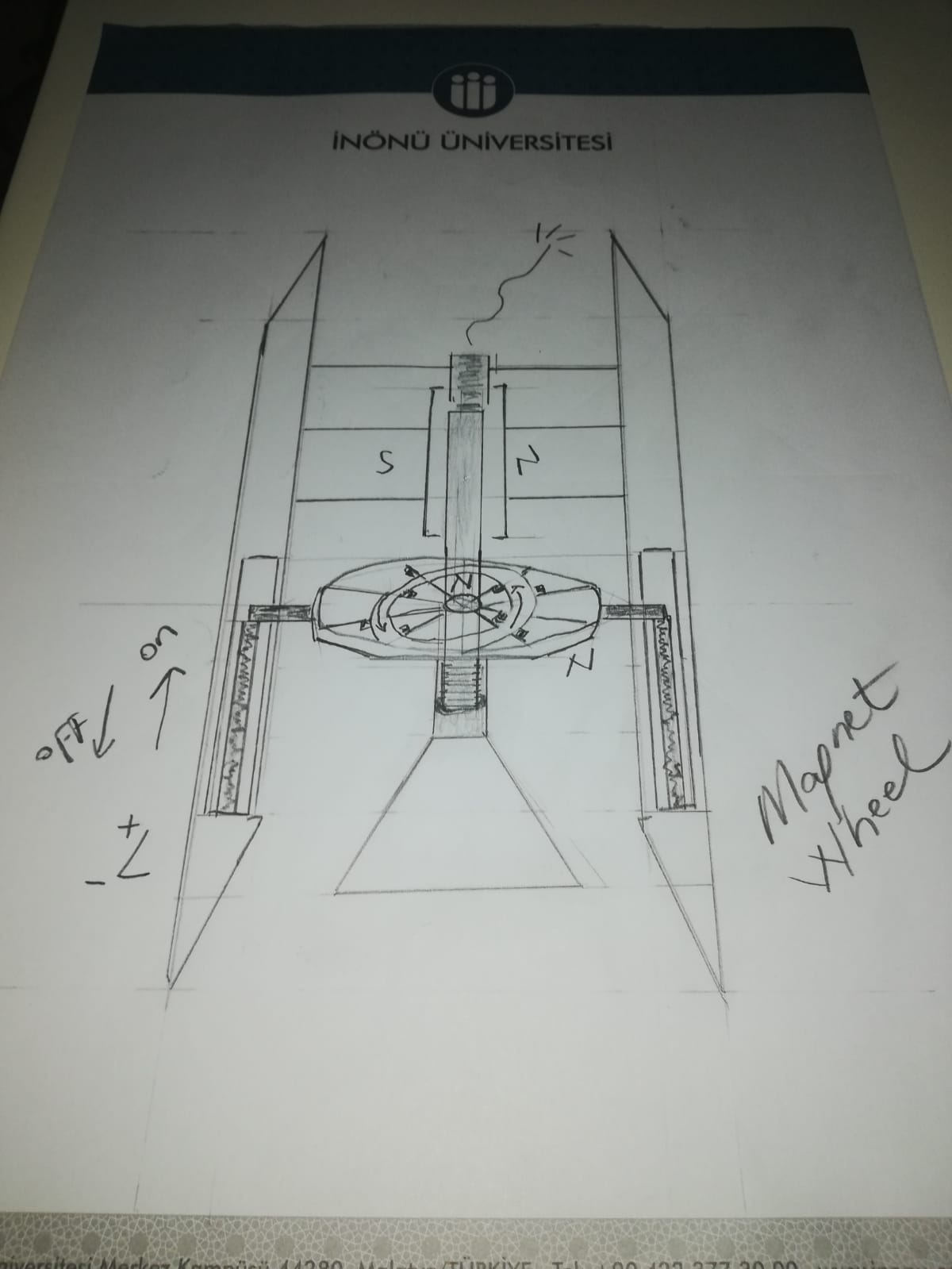

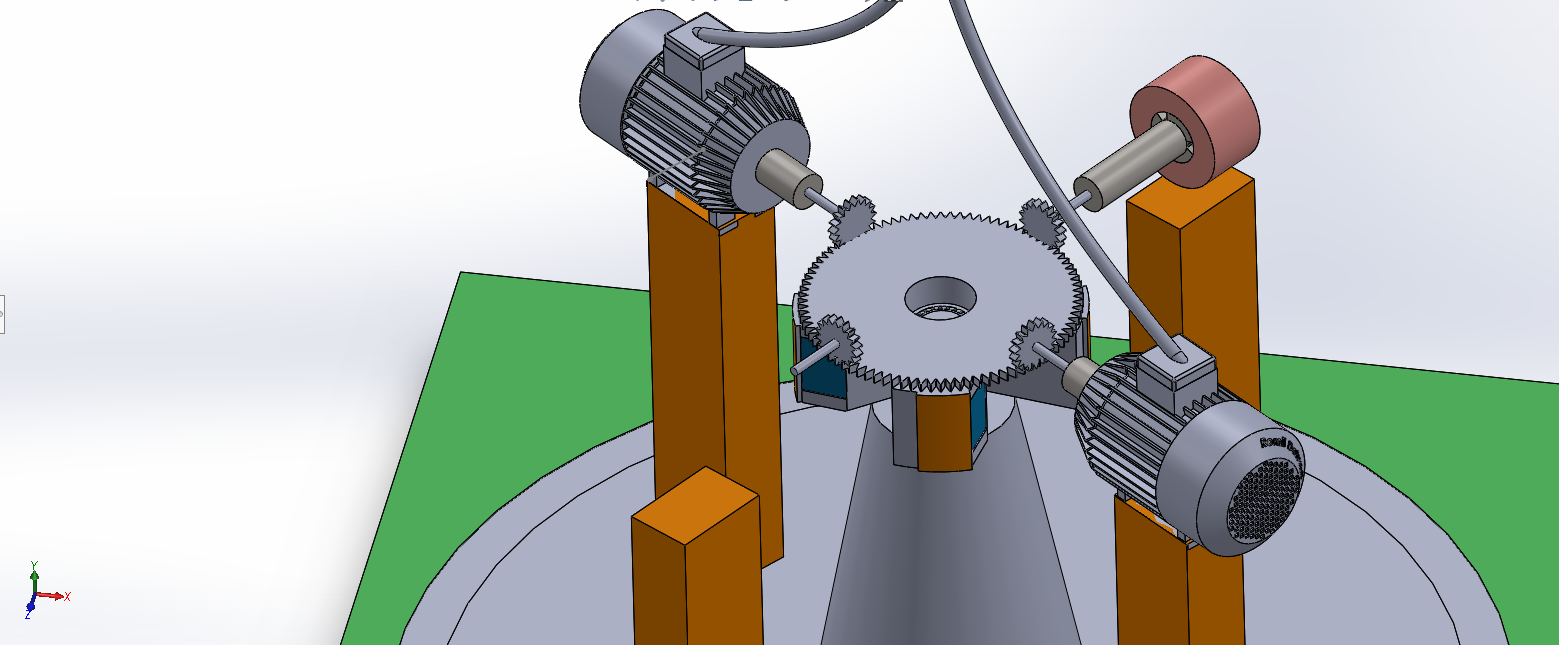

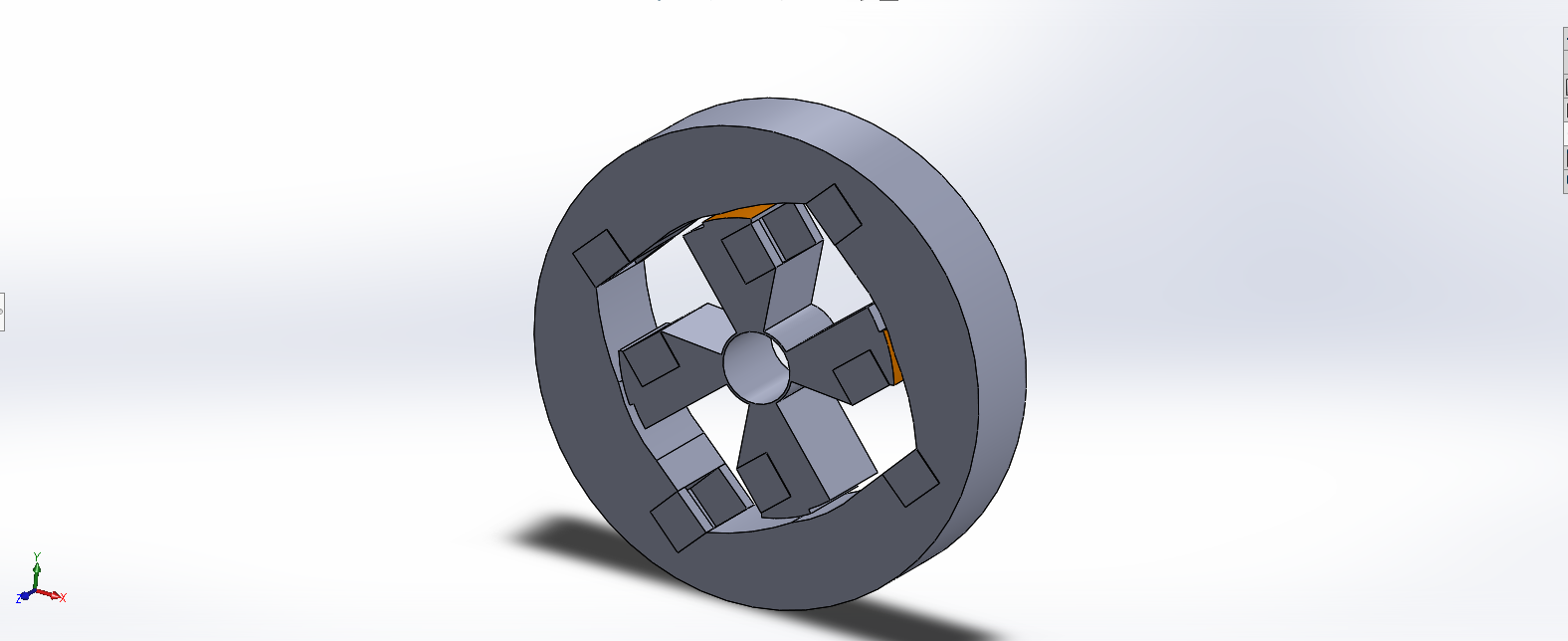

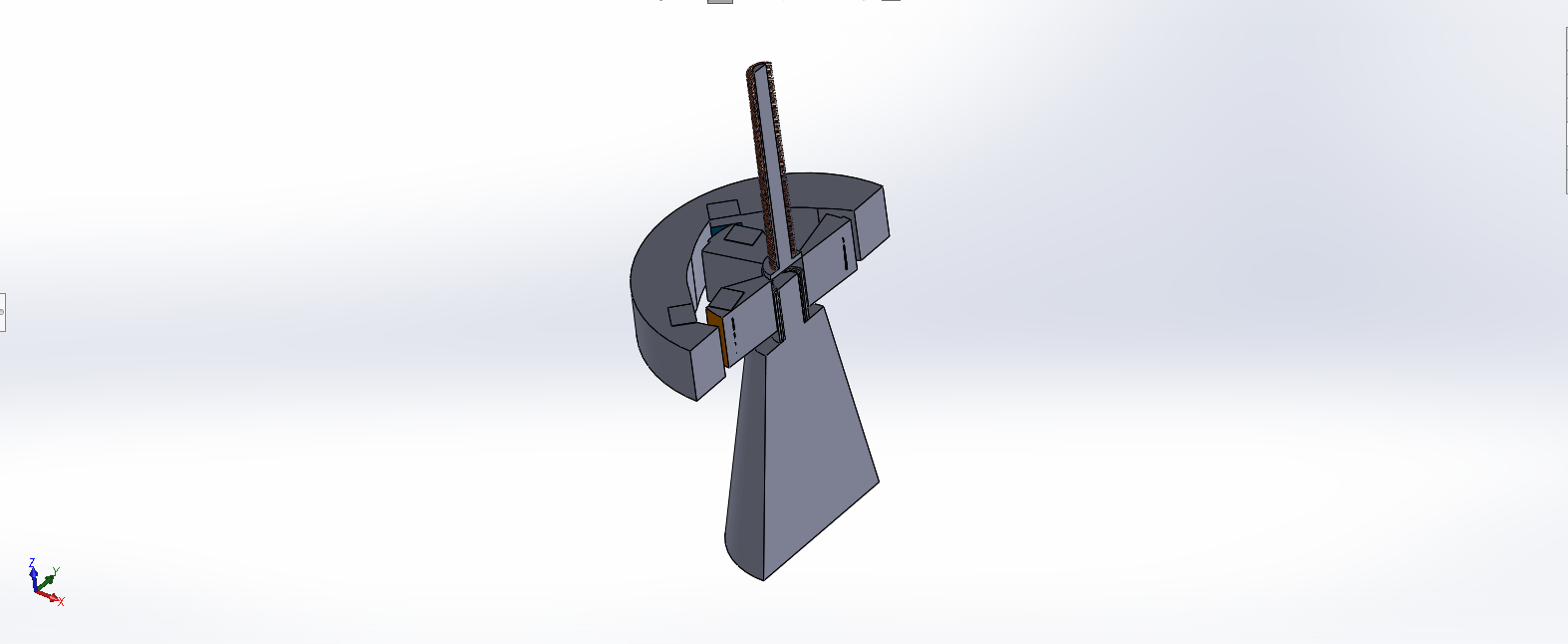

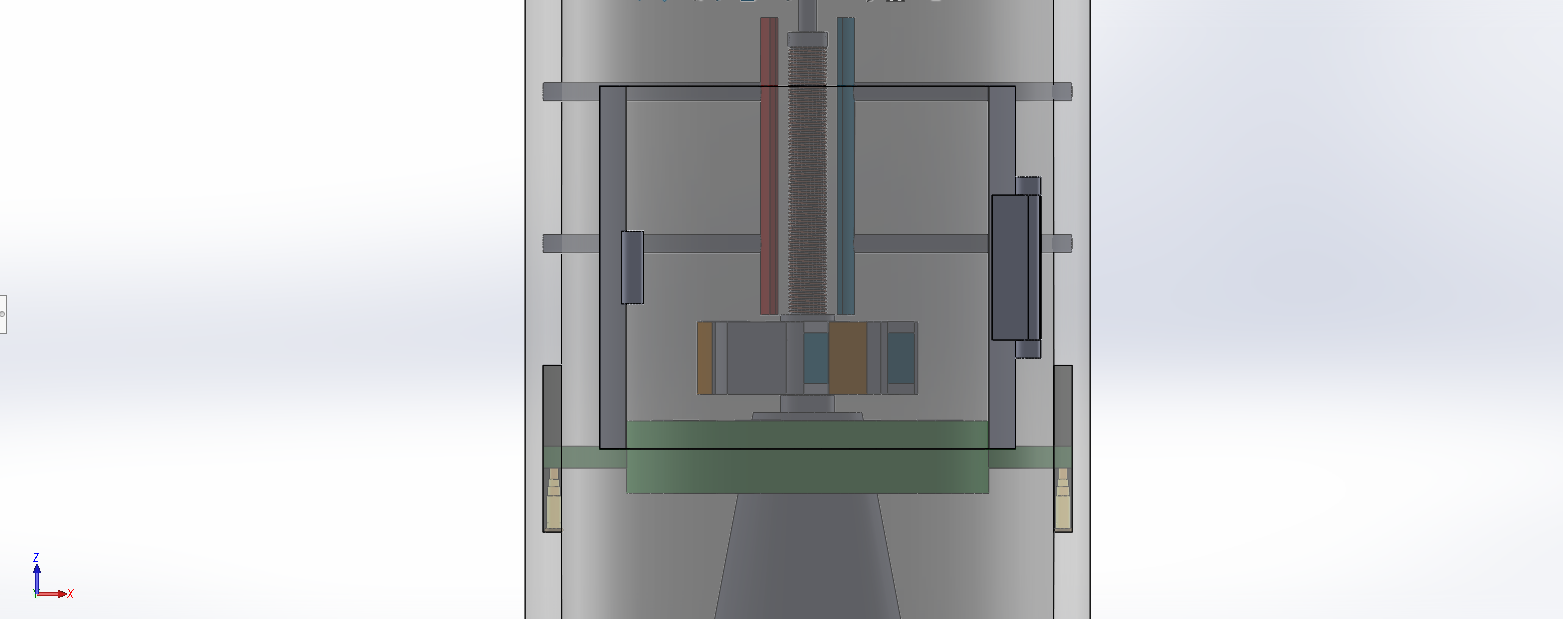

 1- Mıknatıs Tekerleği Elektrik Enerjisi Ūretimi(Magnet Wheel Electrcity Energy Production)

Series B - Tarih 30.07.2020 Saat 17:00

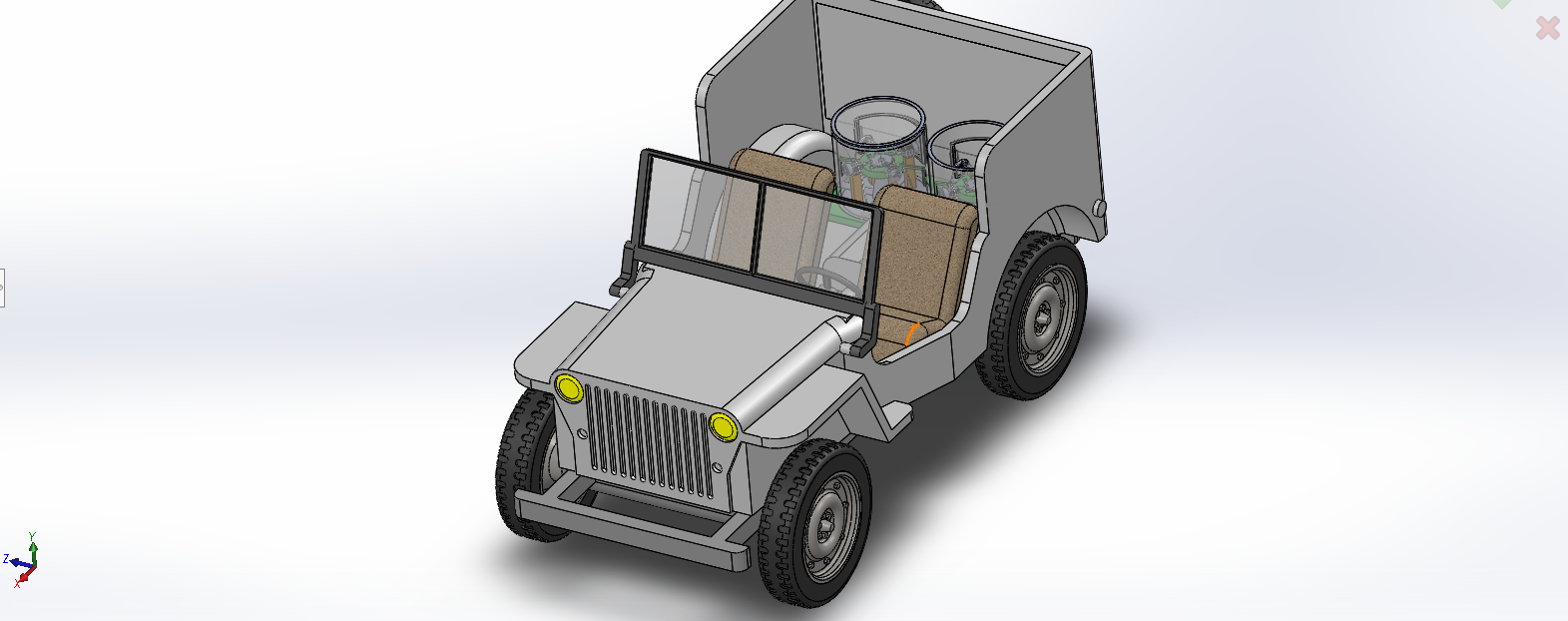

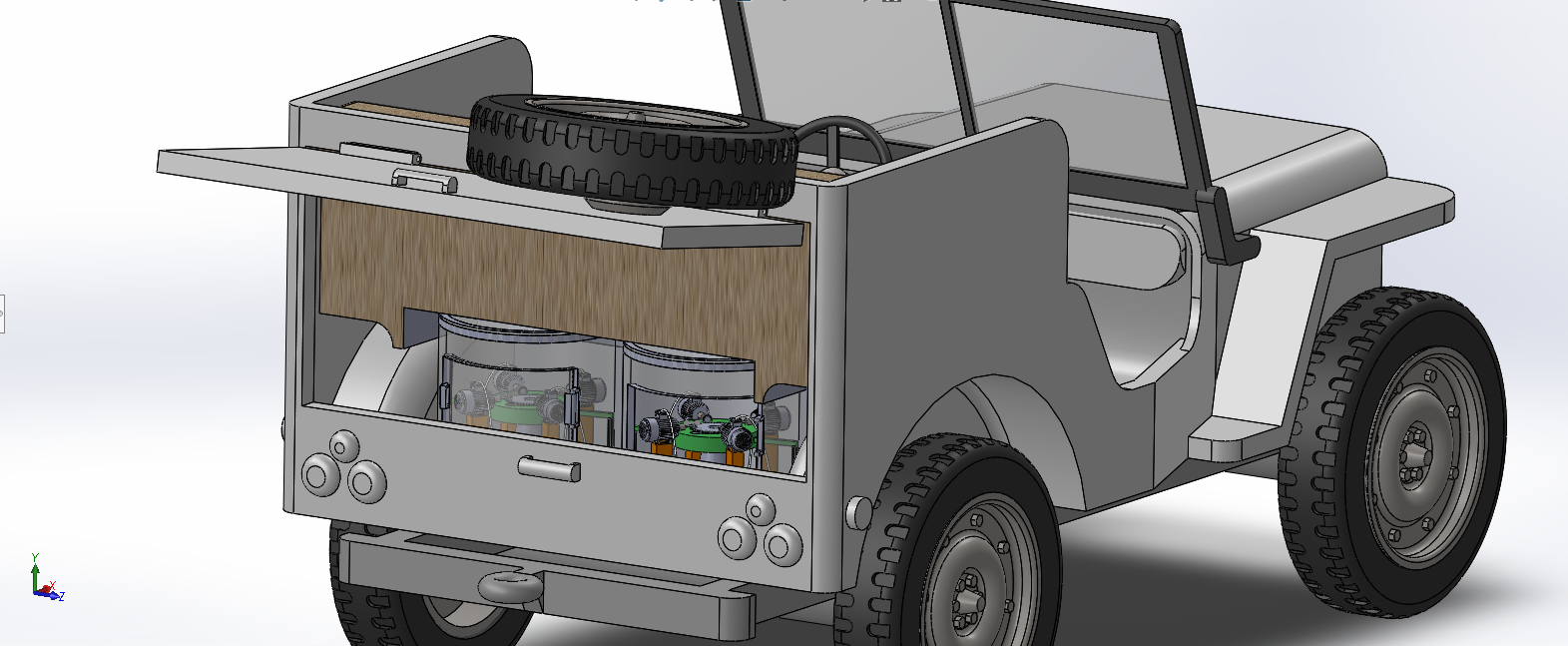

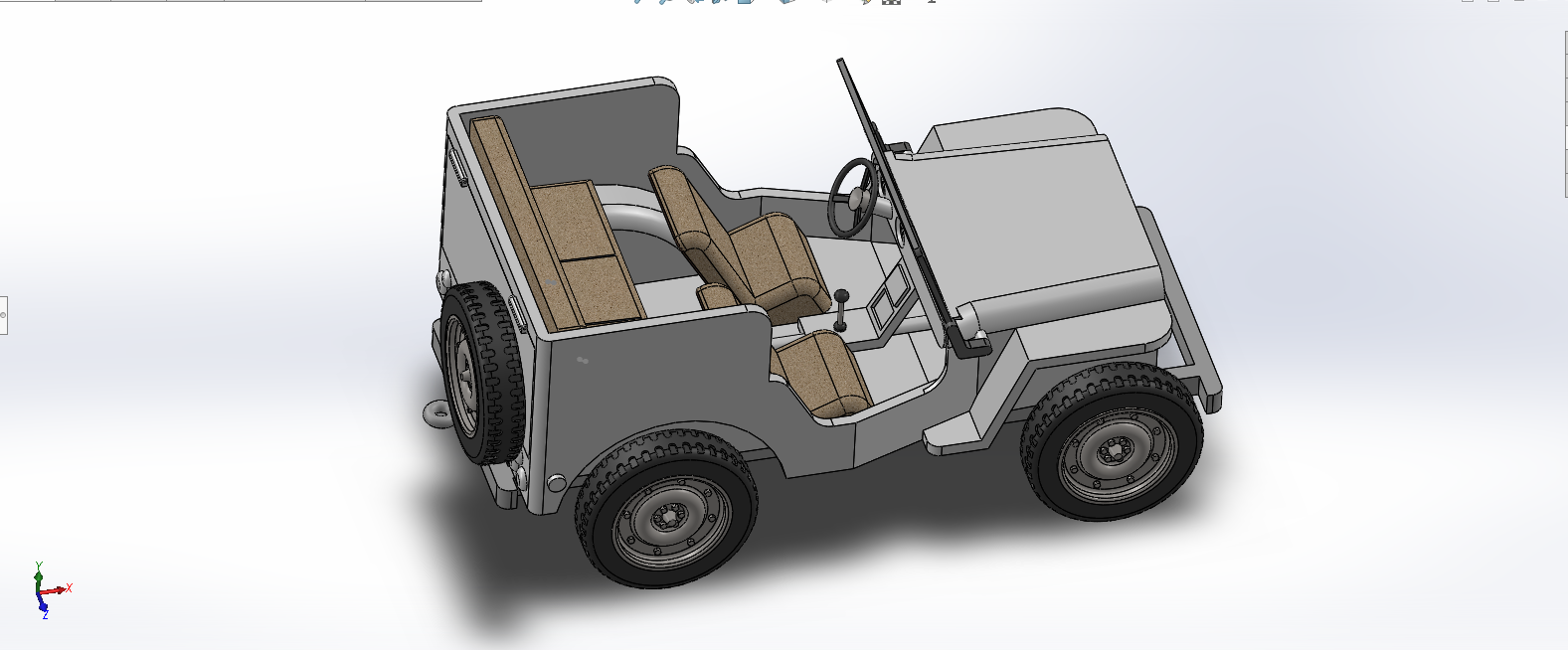

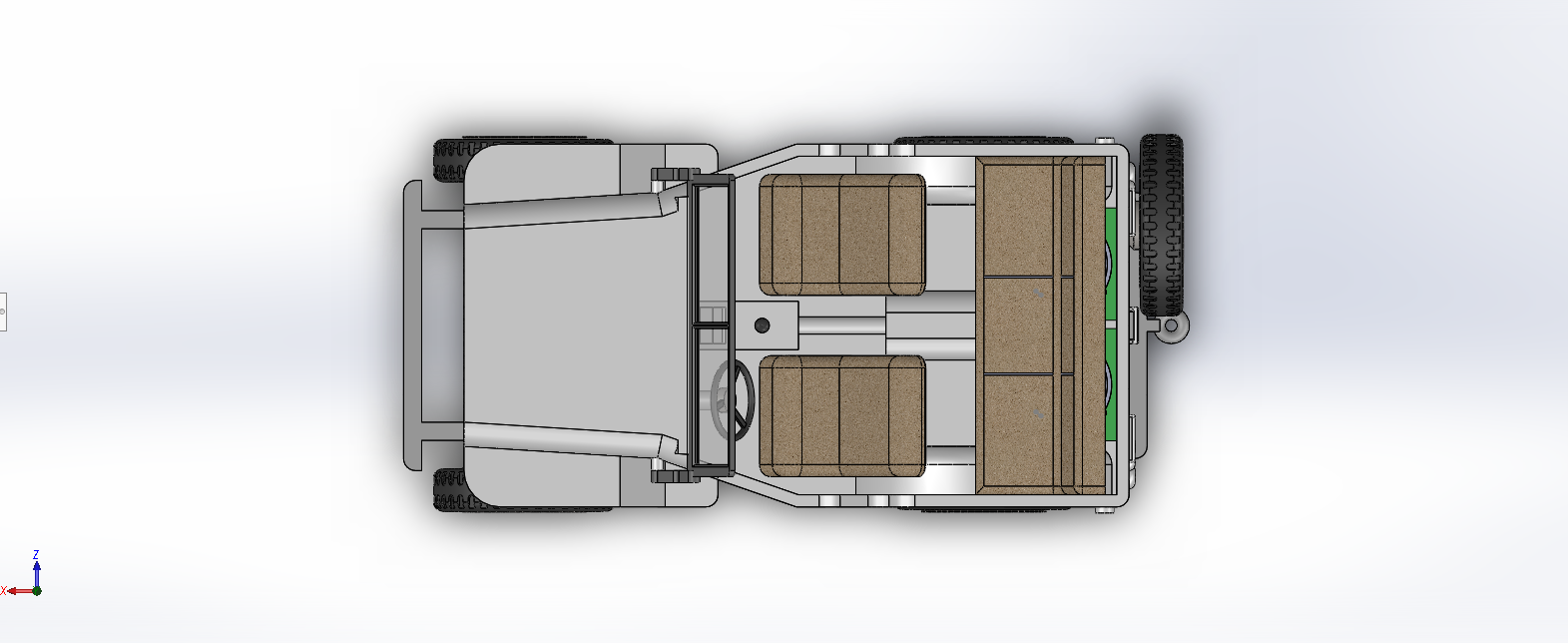

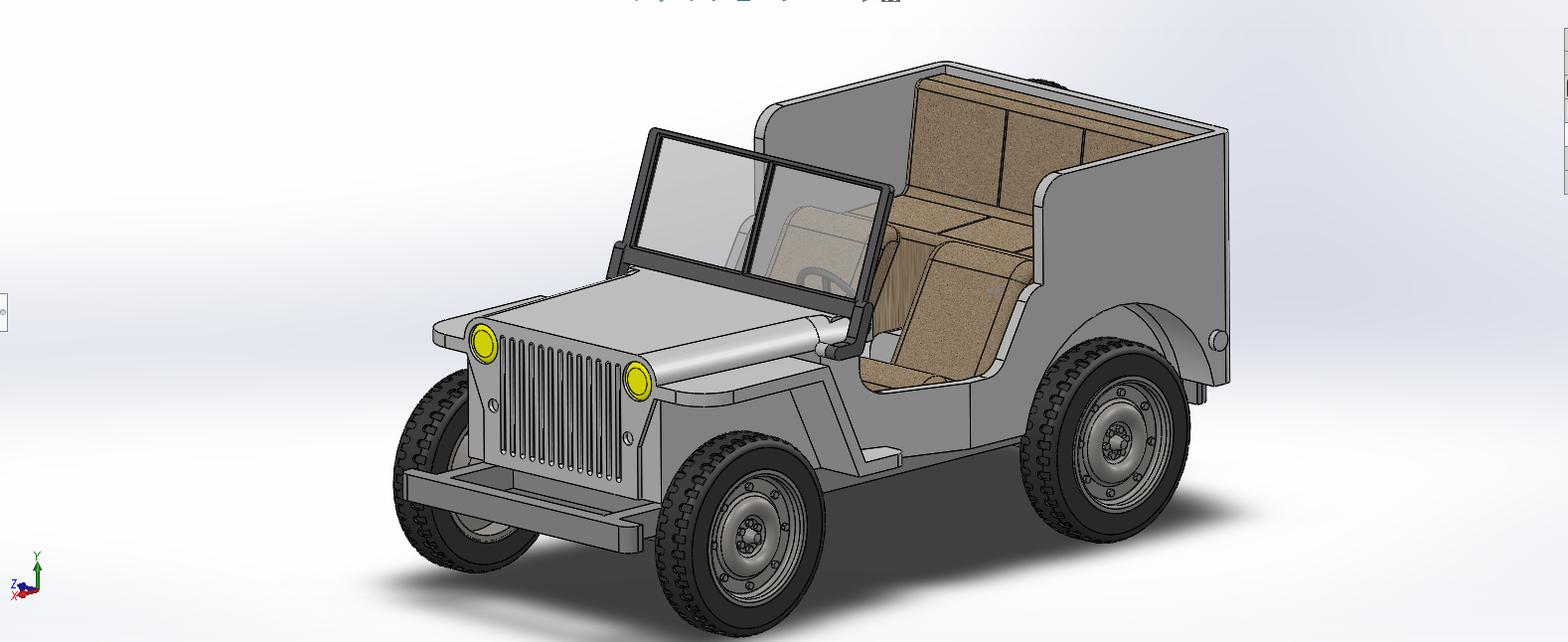

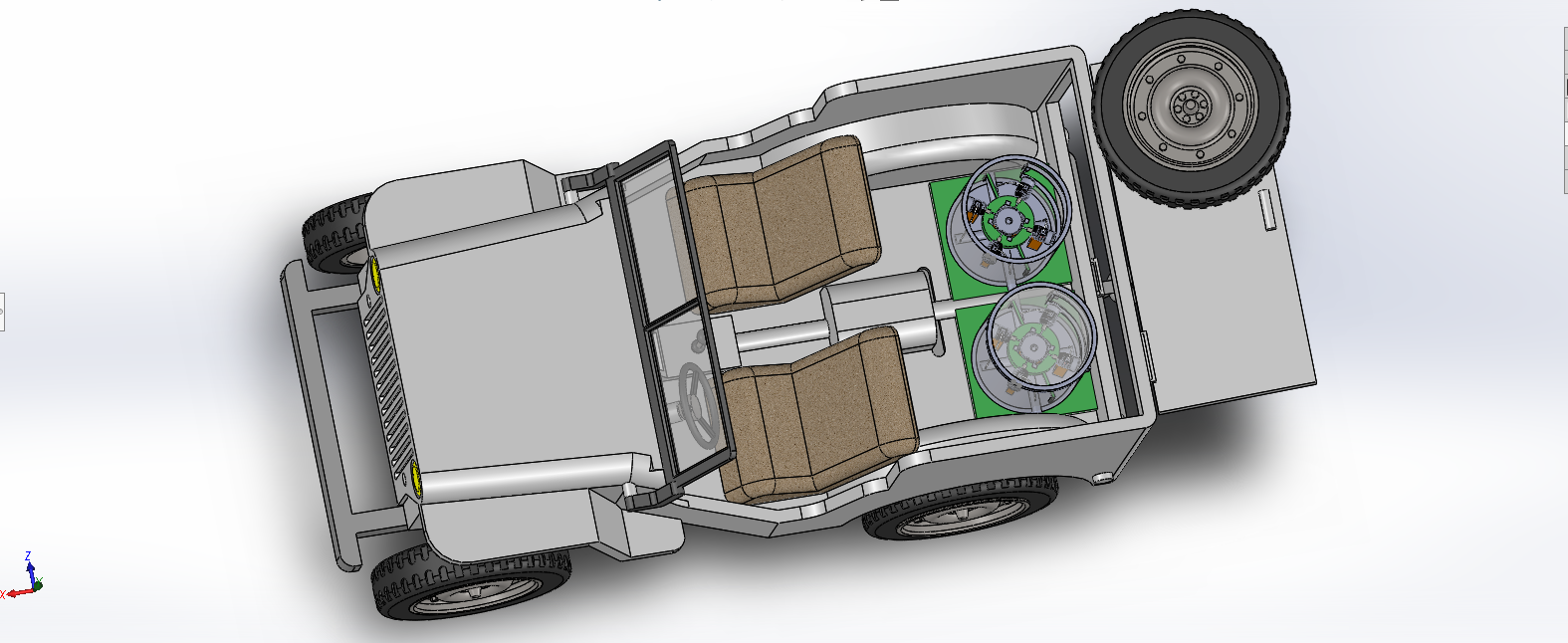

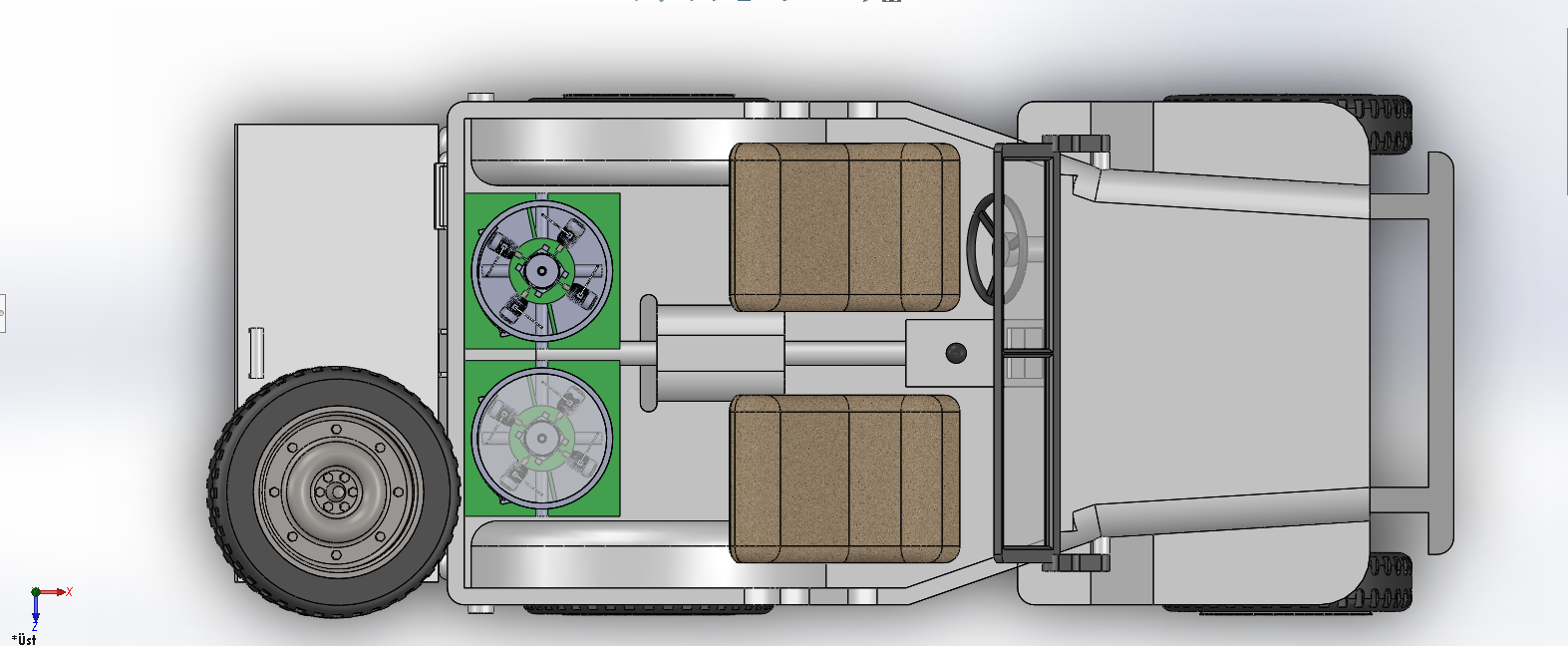

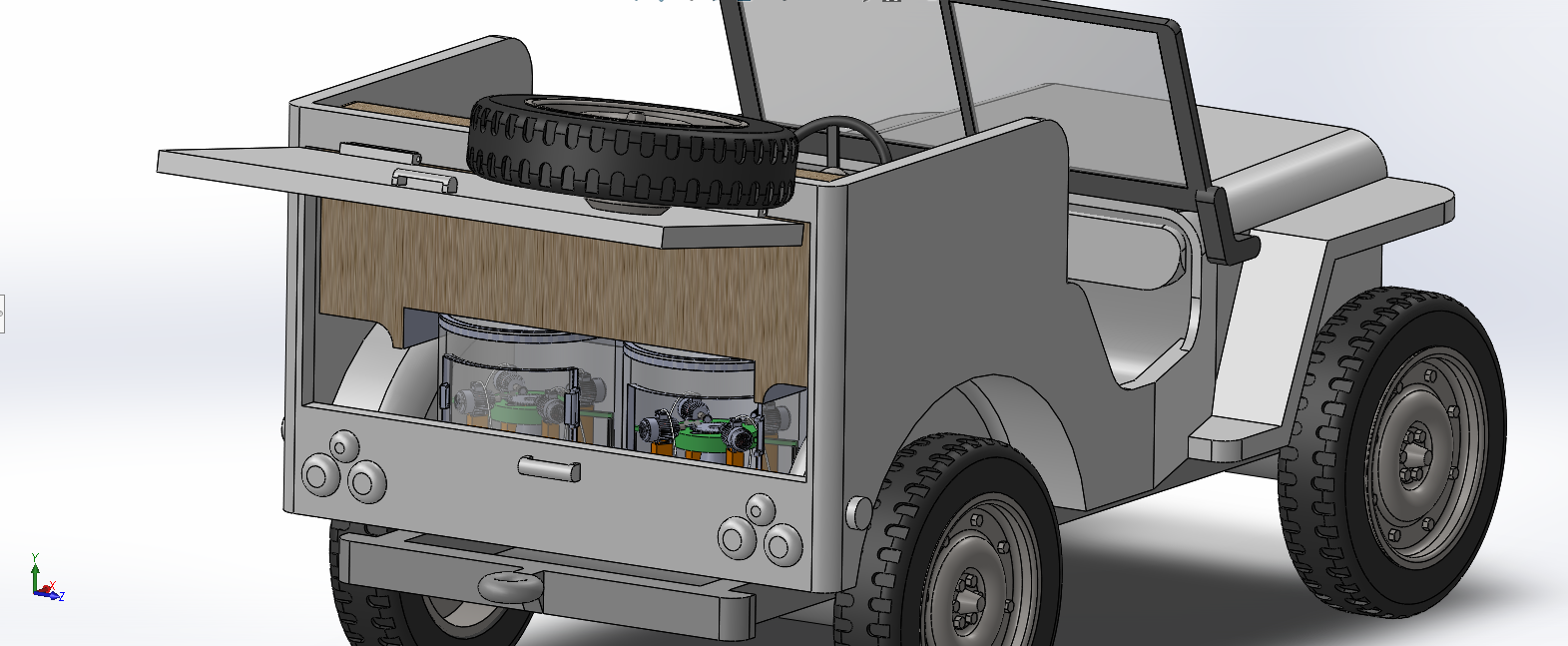

Mobil Takviyeli Elektrikli Otomobil(Mobil Reinforcement Electric Car-as a sample of using one)

Tarih  04.08/2020 Saat:20:01

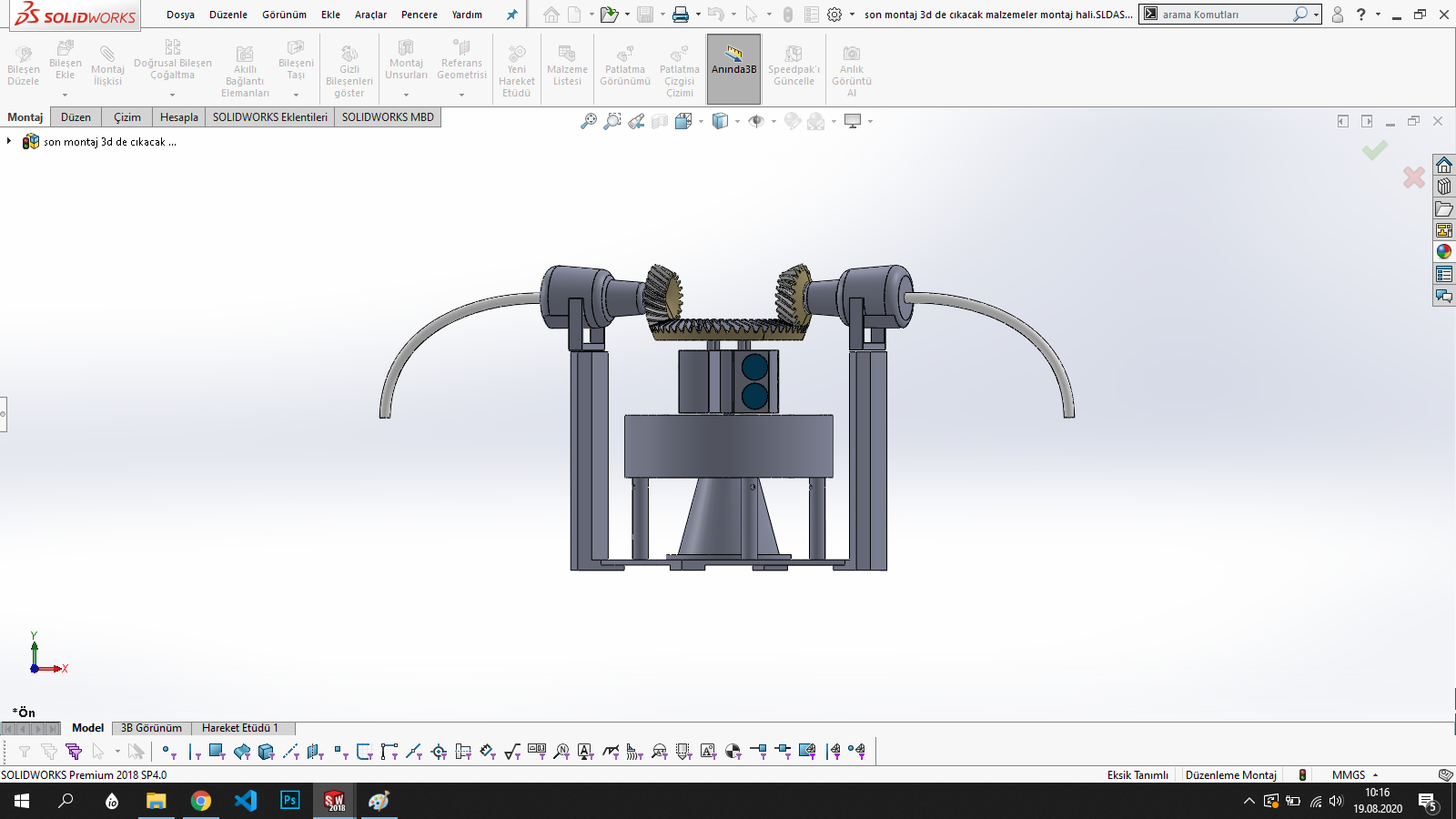

 Operation  Tarih:19.08.2020 Saat 23:20

2- Magnet Destekli Sarkaç Üretimi(Magnet Assisted Pendelum Production) 29/12/2019 Saat:14:05

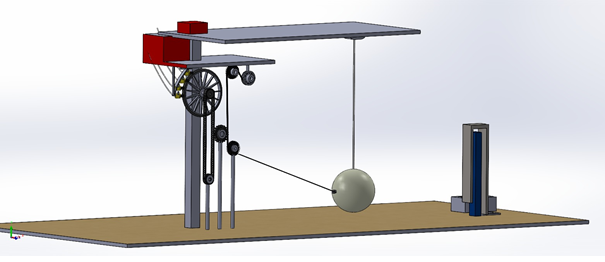

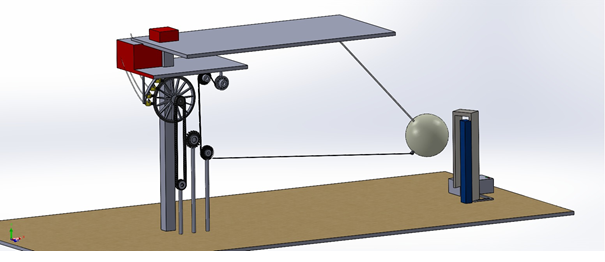

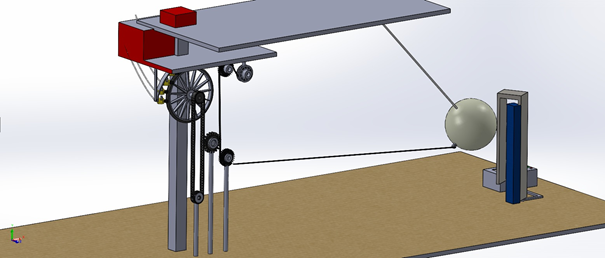

Magnet-assisted Pendulum Production

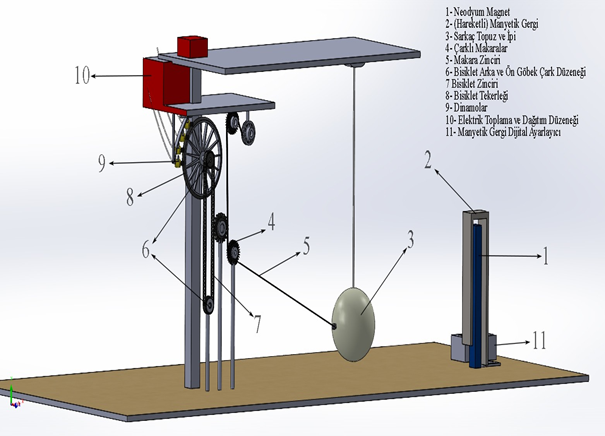

Description: Our system is an electrical energy generation device and can be installed in small and medium-sized sizes. It is very useful and low cost for home, shop, small industry and apartment. Our system consists of the following mechanisms from right to left:

1. Neodymium magnet
2. Magnetic tensioner (movable)
3. Pendulum string and knob
4. Pulleys and paddle pulley
5. Bicycle rear and front hub wheel assembly
6. Dynamos
7. Electricity collector and distributor

Function: The first movement to the pendulum knob, which is contacted with the bicycle movement system and provided with roller and go-go cycle, starts with the movement from the left side. The left-hand knob rotates the bicycle wheel forward, finding its natural elevation on the right. When it returns to its downward movement, the magnetic tensioner opens with a movement to the right, causing the neodymium magnet to push back the pendulum knob (reinforcing the movement of the backward knob). The pendulum moving to the left rotates the bicycle wheel with its rope and pulley assembly. When it moves to the right again, the bicycle wheel turns forward again. This pendulum movement, which becomes cyclical with the effect of the magnet, accelerates the bicycle wheel by rotating it linearly. With this linear loop, the dynamos connected to the wheel generate electricity and transfer the electricity to the main system.

Advantages: The system can be installed as a small and medium-sized power plant. The system is more efficient than, for example, solar and wind energy panels (as these systems work part-time and irregularly) because it can operate indoors and outdoors 24/7, regardless of the season and weather conditions. The installation cost is very low and it is very durable after installation. Therefore, it can be used for many years and does not need maintenance. The electricity produced by the system can be used by home, apartment blocks, greenhouses and small industrial enterprises. Since the system also works without noise and odor, it can be installed in a suitable room and setup, including living interiors.

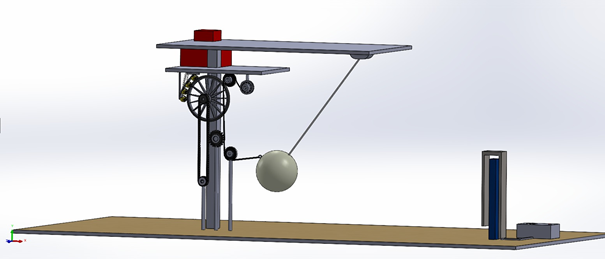

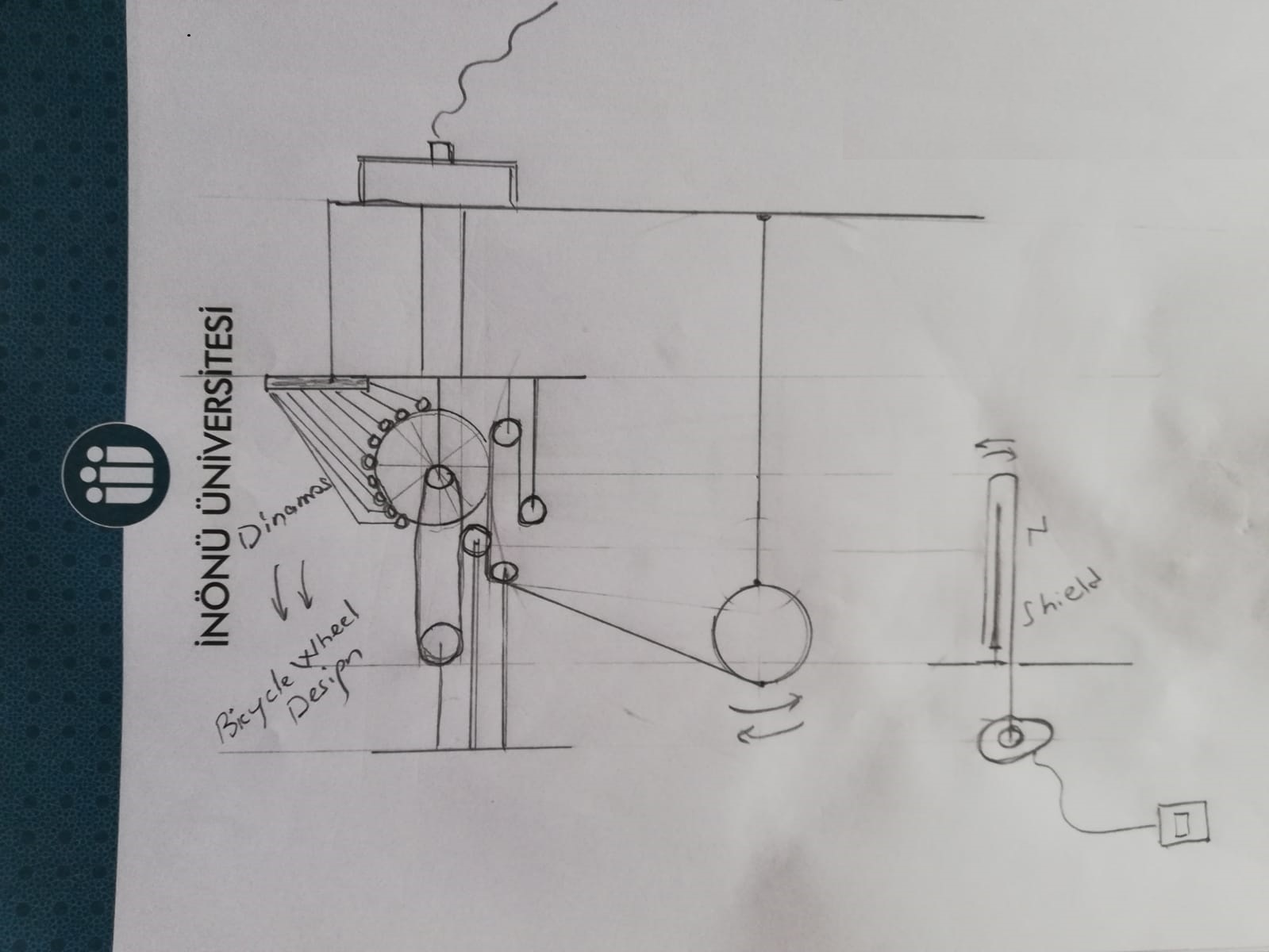

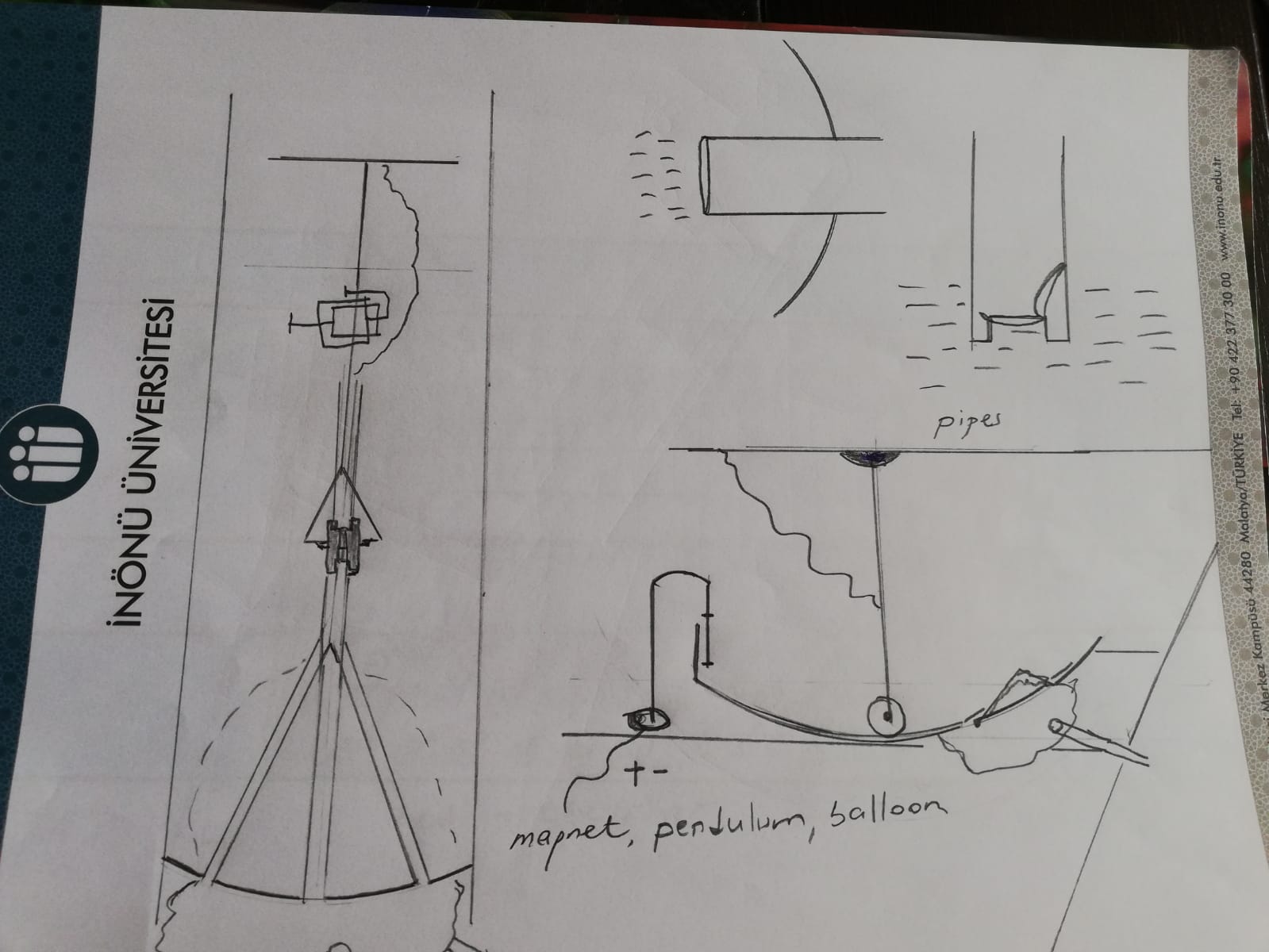

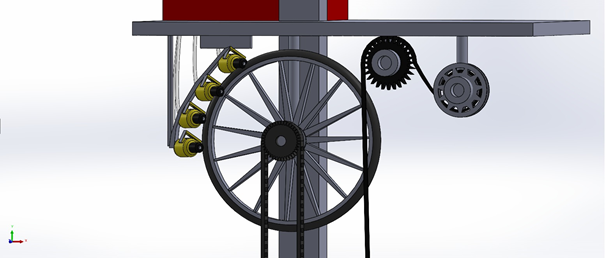

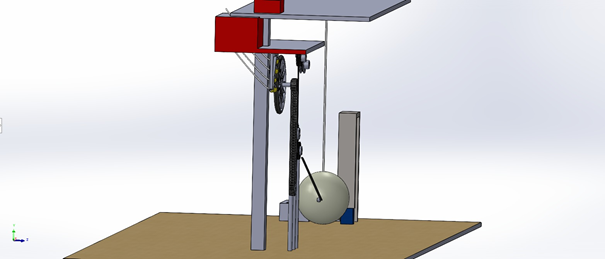

Drawings of the project are given below,

3- Yay Konumlu Magnet Üretimi ( Spring Positioned Magnet Production)29/12/2019 Saat:14:05

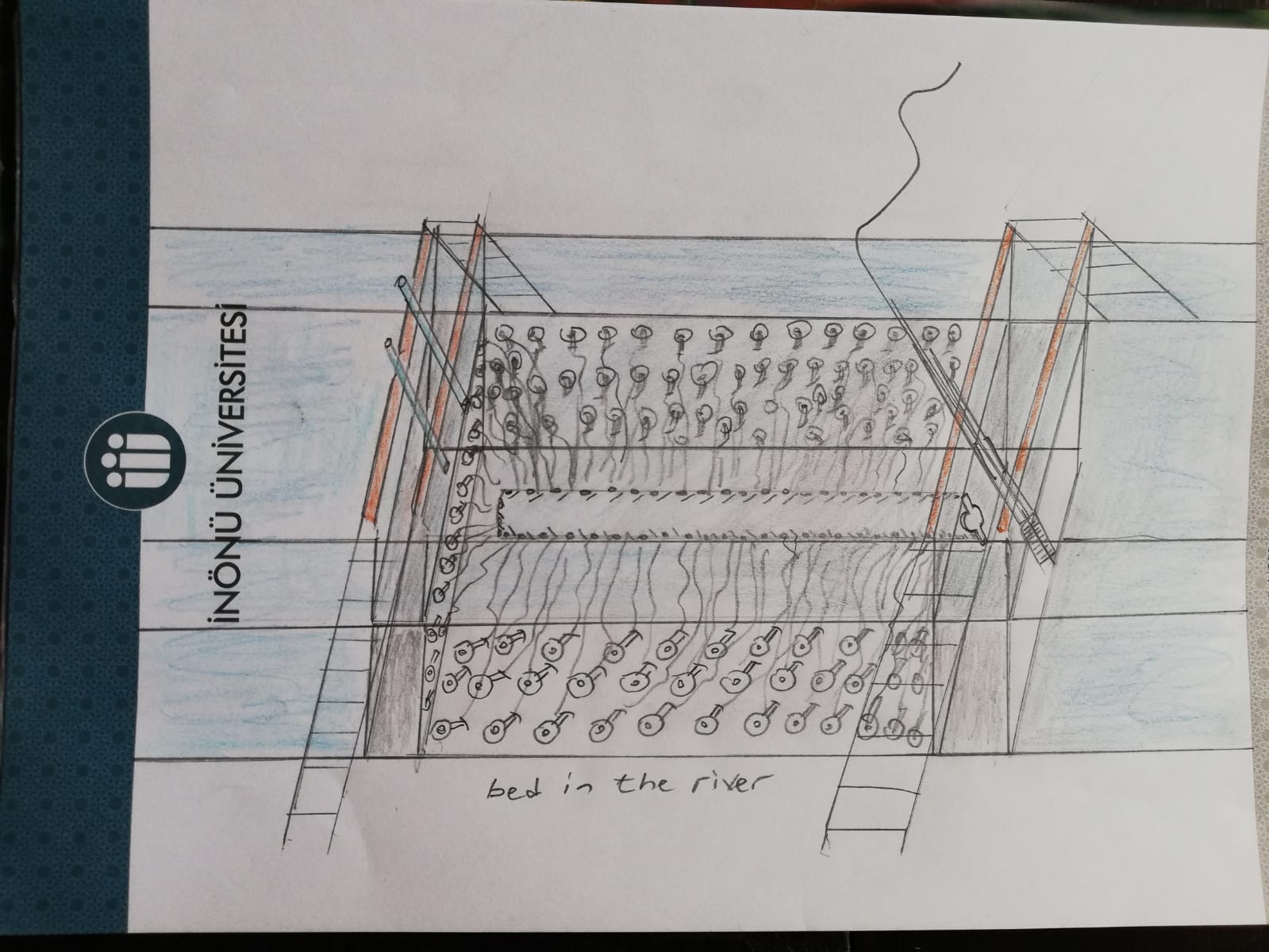

 4- Su Yatağı Üretimi ( Water Bed Production)29/12/2019 Saat:14:05

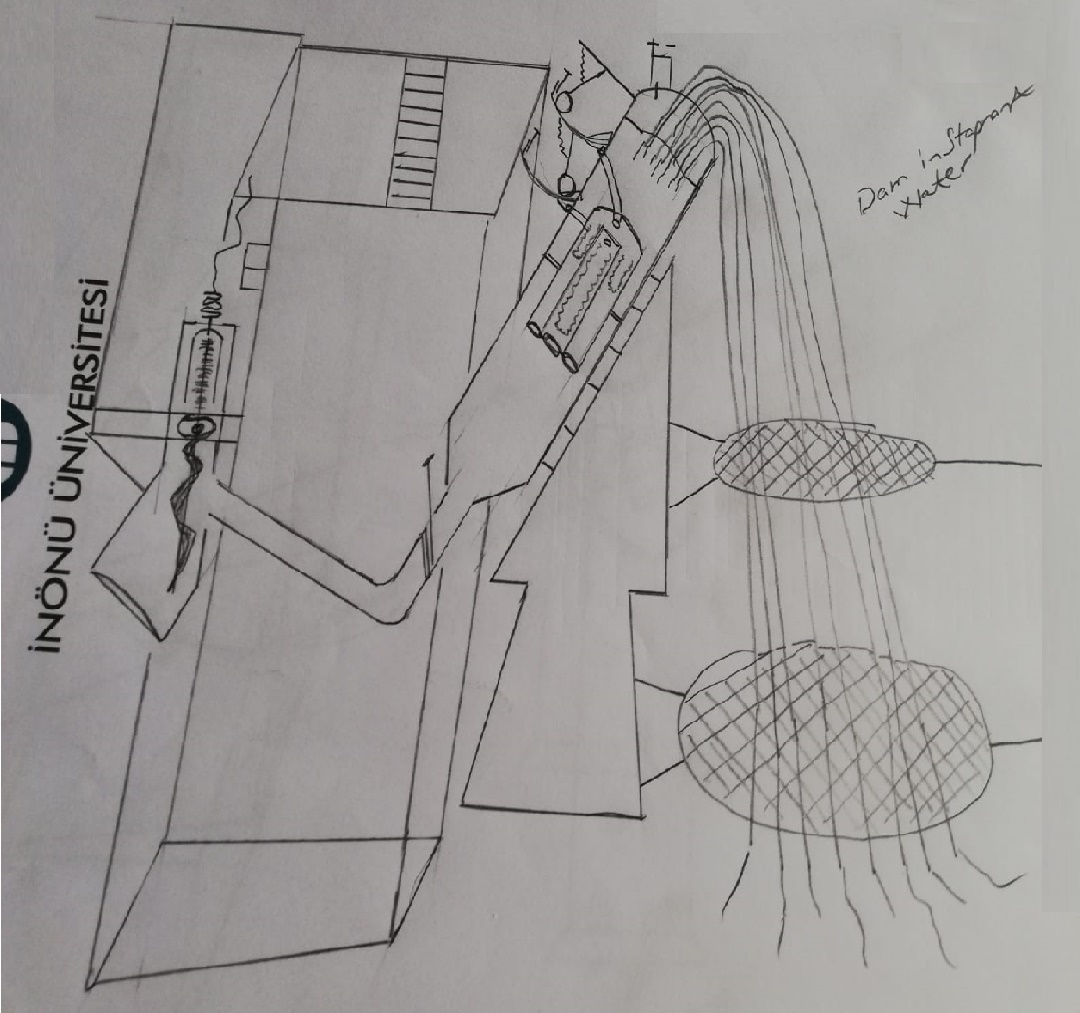

5- Durgun Su Baraj Üretimi ( Stagnant Water Dam Production)29/12/2019 Saat:14:05
